The recommended torque for screw terminals is 0.5 Nm to 1.5 Nm, depending on the wire size and type. It's essential to follow the manufacturer's guidelines to ensure reliable connections.
Yes, the PT15LV02-253A2020-S is designed to withstand vibrations up to 10g (IEC 60068-2-6) and can be used in applications with moderate vibration levels. However, it's recommended to consult with Amphenol Piher's technical support for specific vibration requirements.
The PT15LV02-253A2020-S has a moisture resistance rating of IP40 (IEC 60529) and can operate in environments with relative humidity up to 80% at 40°C. However, it's not suitable for use in extremely humid or wet environments.
The PT15LV02-253A2020-S is rated for operation in temperatures ranging from -40°C to 125°C. However, the potentiometer's performance and lifespan may be affected at extreme temperatures. Consult with Amphenol Piher's technical support for specific temperature requirements.
The recommended wire size for connections is 0.5 mm² to 1.5 mm² (AWG 20 to AWG 16). It's recommended to use stranded copper wire with a temperature rating of at least 150°C to ensure reliable connections.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
PT15LV02-253A2020-S Overview

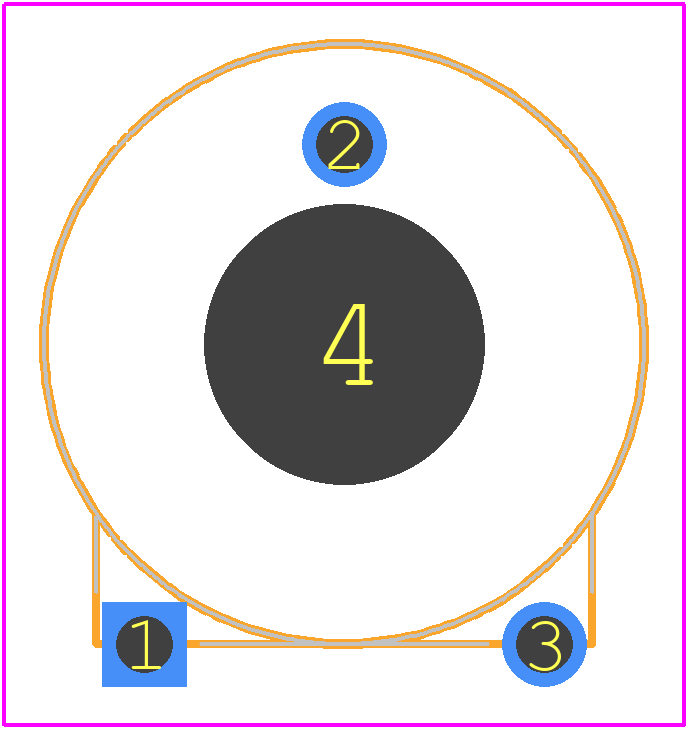

Use the download button to access the PT15LV02-253A2020-S schematic symbol and PCB footprint.
