PT2272M4 - Princeton Technology Corp

Description: PT2272 is a remote control decoder paired with PT2262 utilizing CMOS Technology. It has 12-bit of tri-state address pins providing a maximum of 531,441 (or 312) address codes; thereby, drastically reducing any code collision and unauthorized code scanning possibilities. PT2272 is available in several options to suit every application need: variable number of data output pins, latch or momentary output type.

Download PT2272M4 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this PT2272M4 model

Email notifications will be applied after download.

Send part feedback

Symbol

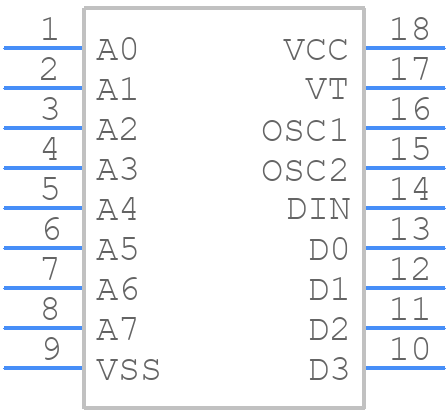

PT2272M4 - Princeton Technology Corp - PCB symbol

PCB Footprints

PT2272M4 - Princeton Technology Corp PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - PT2272M4

3D Models

PT2272M4 - Princeton Technology Corp - 3D model - Dual-In-Line Packages - PT2272M4

Datasheet Download Datasheet
Stock & Prices Price & Stock for PT2272M4
Part Number PT2272M4
Manufacturer Princeton Technology Corp
Pin Count 18
Part Category Integrated Circuit
Package Category Dual-In-Line Packages
Footprint Name Dual-In-Line Packages - PT2272M4
Released Date Jan 31, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

PT2272M4 Details

Manufacturer Part Number:
PT2272M4
Part Life Cycle Code:
Contact Manufacturer
HTS Code:
8542.39.00.60
Manufacturer:
Princeton Technology Corporation

Trust Checks

Community Provided

System Verified

Community Approved

PT2272M4 Overview

Use the download button to access the PT2272M4 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like PT227, or try a keyword search, such as Other Logic ICs
