The recommended land pattern for PT2512FK-070R5L is a rectangular pad with a size of 2.5mm x 1.2mm, with a solder mask clearance of 0.1mm. It's recommended to follow the IPC-7351 standard for land pattern design.
Yes, PT2512FK-070R5L is compatible with lead-free soldering. YAGEO Corporation ensures that their products meet the requirements of the RoHS directive, which includes the use of lead-free materials.
The MSL of PT2512FK-070R5L is MSL 2, which means it can withstand a maximum of 30°C/60%RH for 168 hours. It's recommended to follow the JEDEC standard J-STD-020 for moisture sensitivity handling.
While PT2512FK-070R5L is a general-purpose resistor, it's not recommended for high-frequency applications above 100MHz. For high-frequency applications, it's recommended to use specialized resistors with low inductance and high-frequency characteristics.
The recommended storage condition for PT2512FK-070R5L is in a dry, cool place with a temperature range of 5°C to 30°C and a relative humidity of 60% or less. Avoid storing the components in direct sunlight or near heat sources.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PT2512FK-070R5L Overview

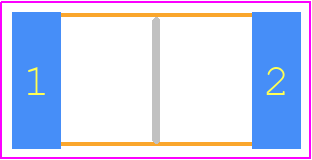

Use the download button to access the PT2512FK-070R5L schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PT251,
or try a keyword search, such as Metal Glaze/Thick Film Resistors
