PT5R-1000HM - API Delevan

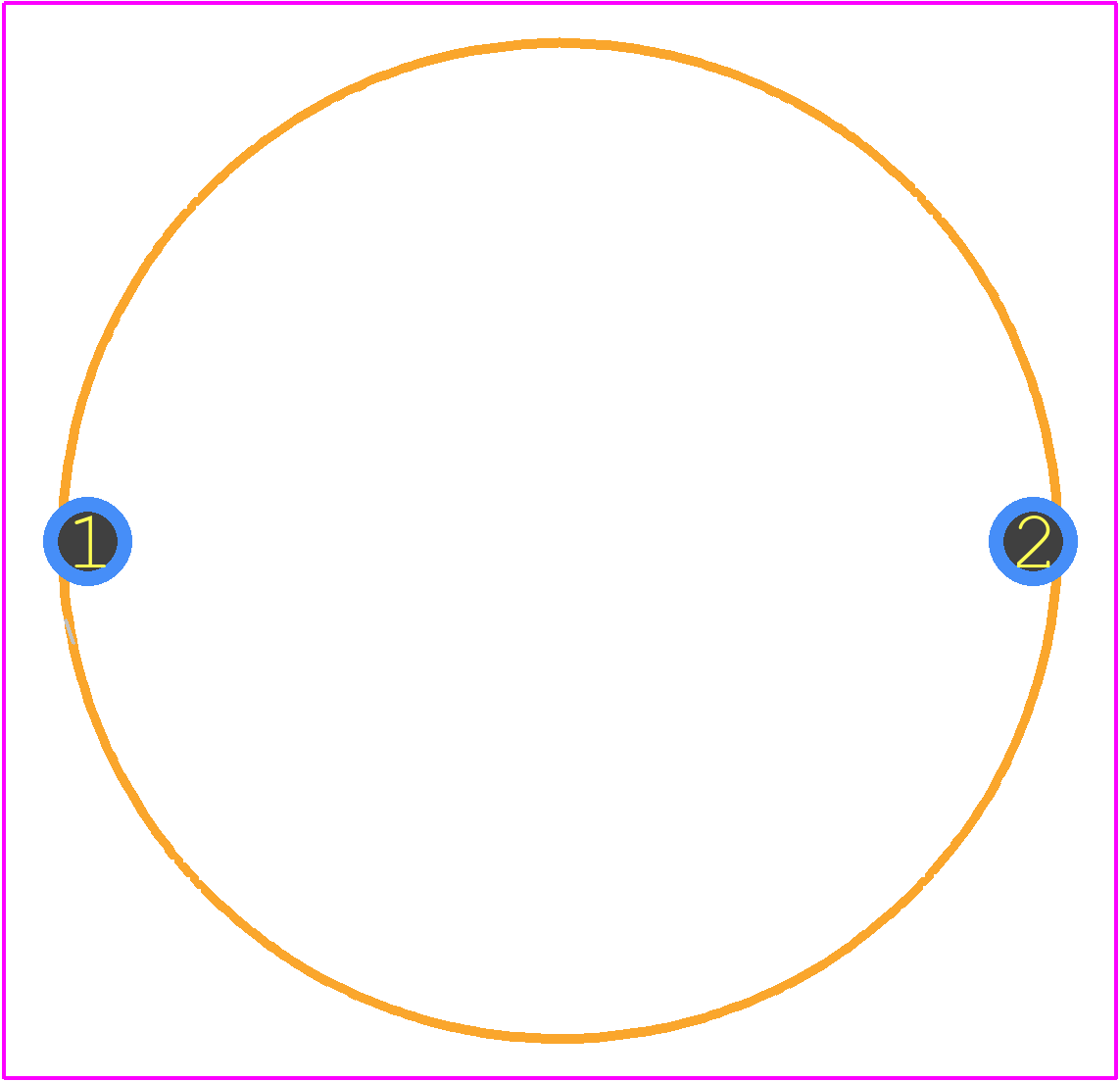

PT5R-1000HM Details

• Manufacturer Part Number:

  PT5R-1000HM

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  RADIAL LEADED

• ECCN Code:

  EAR99

• HTS Code:

  8504.50.80.00

• Manufacturer:

  API Delevan

• YTEOL:

  6.8

• Construction:

  Toroidal

• Core Material:

  IRON

• DC Resistance:

  0.008 Ω

• Inductance-Nom (L):

  5 µH

• Inductor Application:

  POWER INDUCTOR

• Inductor Type:

  GENERAL PURPOSE INDUCTOR

• JESD-609 Code:

  e2

• Lead Diameter:

  1.3 mm

• Lead Length:

  12.7 mm

• Lead Spacing:

  24.13 mm

• Number of Functions:

  1

• Number of Terminals:

  2

• Package Diameter:

  25.4 mm

• Package Length:

  10.16 mm

• Package Style:

  Toroidal

• Packing Method:

  Bulk

• Rated Current-Max:

  12.8 A

• Shape/Size Description:

  CYLINDRICAL PACKAGE

• Shielded:

  YES

• Surface Mount:

  NO

• Terminal Finish:

  Tin/Copper (Sn99.3Cu0.7)

• Terminal Placement:

  RADIAL

• Terminal Shape:

  WIRE

• Test Frequency:

  0.001 MHz

• Tolerance:

  15%
