A good PCB layout for the PT61018AAPEL-S involves keeping the input and output traces separate, using a solid ground plane, and minimizing the length of the input and output traces. It's also recommended to use a common mode choke or ferrite bead to filter out high-frequency noise.
To ensure reliability in high-temperature applications, it's essential to follow proper thermal management practices, such as providing adequate airflow, using a heat sink, and ensuring that the device is operated within its specified temperature range. Additionally, consider using a thermally conductive material, such as a thermal pad or thermal tape, to improve heat dissipation.
To minimize EMI/EMC issues with the PT61018AAPEL-S, use a shielded enclosure, keep the device away from high-frequency sources, and use EMI filters or ferrite beads on the input and output lines. Additionally, ensure that the PCB layout is designed to minimize radiation and coupling between traces.
Yes, the PT61018AAPEL-S can be used in a redundant or parallel configuration to achieve higher power ratings. However, it's essential to ensure that the devices are properly synchronized and that the output voltages are matched to prevent current imbalances and reduce the risk of overheating.
To ensure safe operation of the PT61018AAPEL-S, follow proper safety guidelines, such as using protective equipment, avoiding electrical shock hazards, and ensuring that the device is operated within its specified voltage and current ratings. Additionally, ensure that the device is installed and maintained by qualified personnel.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PT61018AAPEL-S Overview

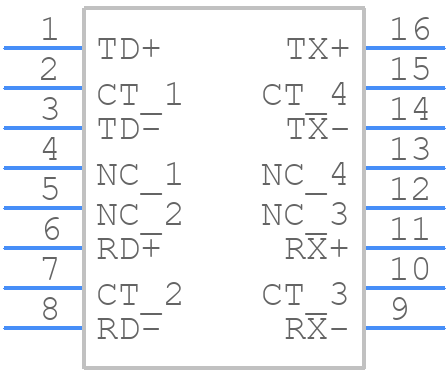

Use the download button to access the PT61018AAPEL-S schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PT610,
or try a keyword search, such as Pulse/Datacom Transformers
