A good PCB layout for the PT61018PEL involves keeping the input and output traces separate, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a common mode choke or a ferrite bead to filter out high-frequency noise.
To ensure the PT61018PEL operates within its specified temperature range, make sure to provide adequate heat sinking, avoid overheating, and keep the device away from high-temperature sources. Also, consider using a thermal interface material to improve heat transfer between the device and the heat sink.
Exceeding the maximum ratings of the PT61018PEL can lead to reduced lifespan, permanent damage, or even catastrophic failure. It's essential to operate the device within its specified voltage, current, and temperature ratings to ensure reliable operation and prevent premature failure.
To troubleshoot issues with the PT61018PEL, start by verifying the input voltage, current, and temperature are within the specified ranges. Check for signs of physical damage, overheating, or electrical overstress. Use an oscilloscope to analyze the input and output waveforms, and consult the datasheet and application notes for guidance.
The PT61018PEL is a commercial-grade device, and its use in high-reliability or safety-critical applications may require additional testing, validation, and certification. It's essential to consult with Bourns Inc or a qualified reliability engineer to determine the device's suitability for such applications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PT61018PEL Overview

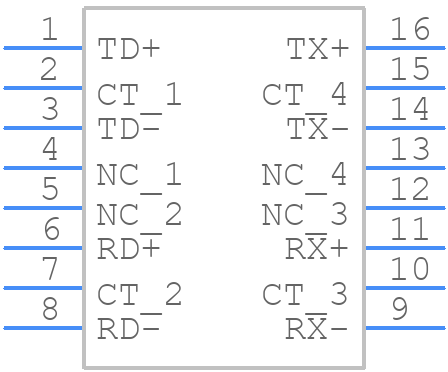

Use the download button to access the PT61018PEL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PT610,
or try a keyword search, such as Pulse/Datacom Transformers
