PT7,5/2/15 - BLOCK

Description: Short circuit proof PCB transformer, safety isolating transformer 7.5 VA 230V 50Hz to 60Hz 1.3 W B (130°C)

Download PT7,5/2/15 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this PT7,5/2/15 model

Email notifications will be applied after download.

Send part feedback

Symbol

PT7,5/2/15 - BLOCK - PCB symbol

PCB Footprints

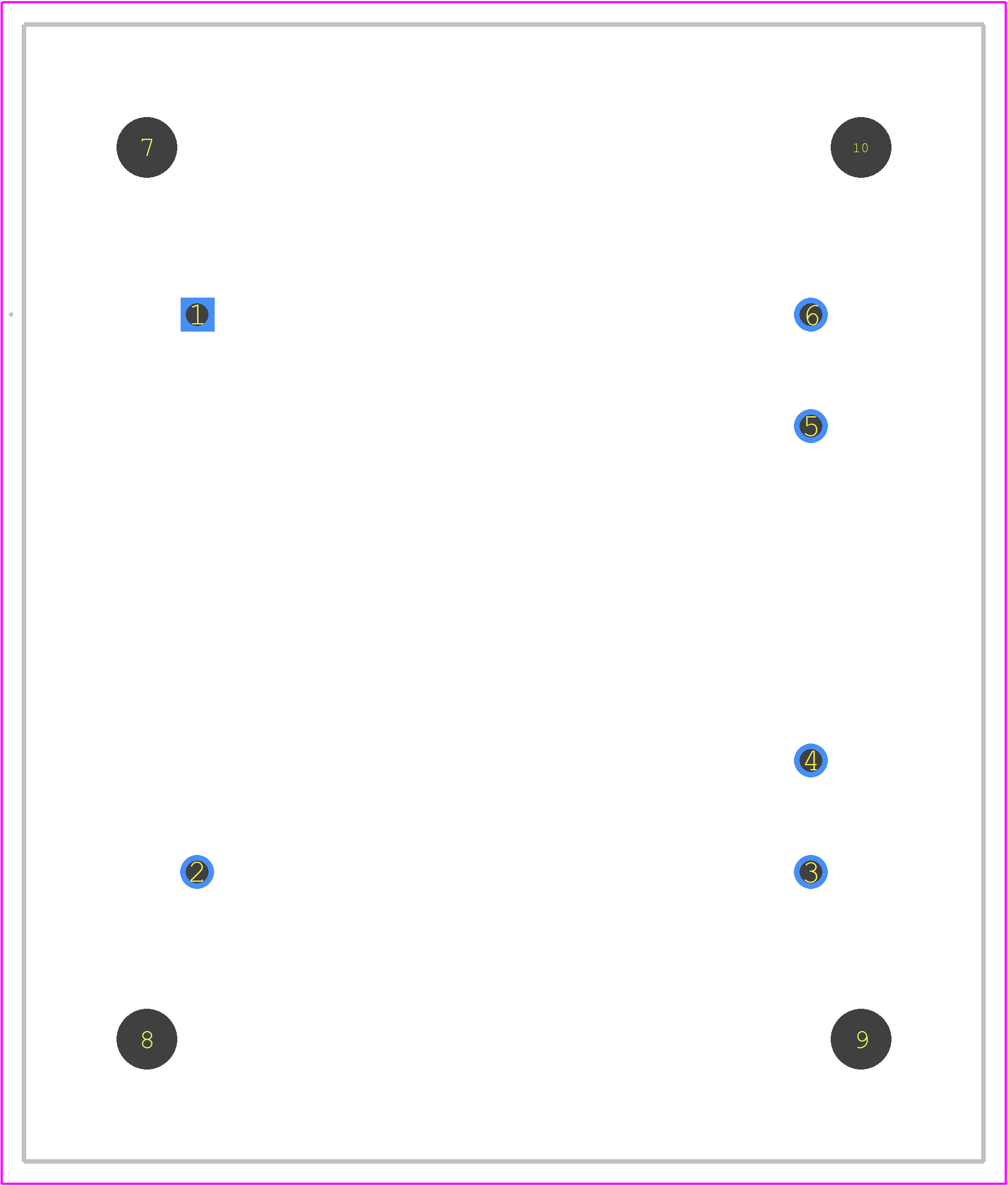

PT7,5/2/15 - BLOCK PCB footprint - Other - Other - 51 x 43 x 36mm

3D Models

PT7,5/2/15 - BLOCK - 3D model - Other - 51 x 43 x 36mm

Datasheet Download Datasheet
Stock & Prices Price & Stock for PT7,5/2/15
Part Number PT7,5/2/15
Manufacturer BLOCK
Pin Count 6
Part Category Transformer
Package Category Other
Footprint Name Other - 51 x 43 x 36mm
Released Date Mar 17, 2026
Last Modified Date Mar 17, 2026 5:53 AM UTC
Pinout / Pin List Click Here (Member Only)

PT7,5/2/15 Details

Manufacturer Part Number:
PT7,5/2/15
Manufacturer:
BlockMaster Blocks

Trust Checks

Community Provided

System Verified

Community Approved

PT7,5/2/15 Overview

Use the download button to access the PT7,5/2/15 schematic symbol, PCB footprint, and 3D model.
