PTA1543-2010CIB103 - Bourns

Description: 10 kOhms 0.05W, 1/20W Through Hole Slide Potentiometer Top Adjustment Type

Download PTA1543-2010CIB103 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

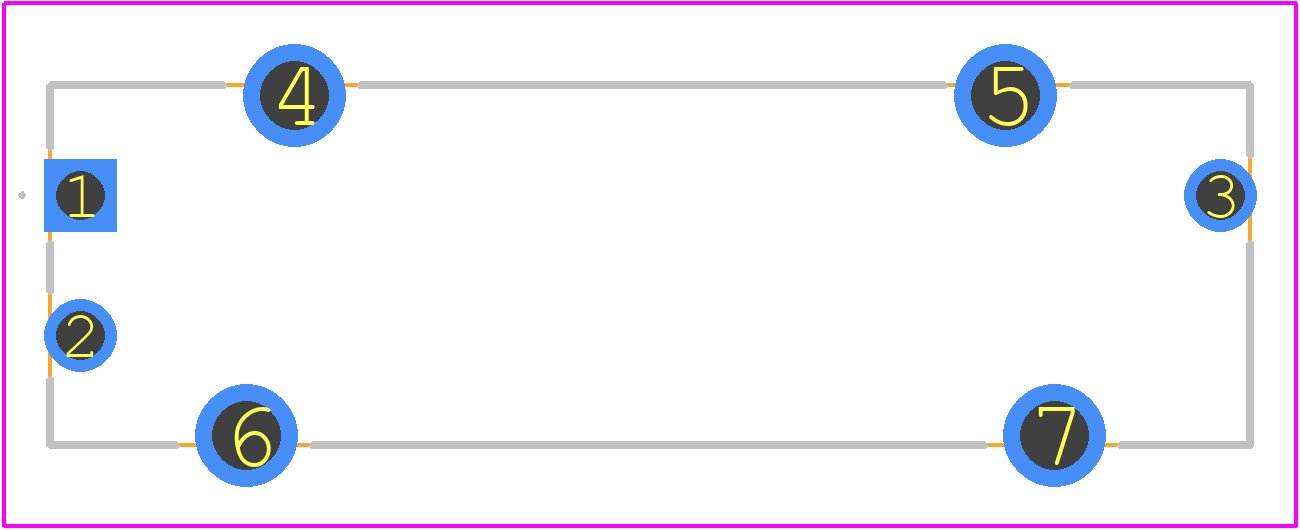

PTA1543-2010CIB103 - Bourns PCB footprint - Other - Other - PTA1543-2010CIB103-2
click to zoom
3D Models
PTA1543-2010CIB103 - Bourns  - 3D model - Other - PTA1543-2010CIB103-2
click to zoom

PTA1543-2010CIB103 Details

  • Manufacturer Part Number:

    PTA1543-2010CIB103

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.40.80.70

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Bourns Inc

  • YTEOL:

    6.65

  • Actuator Orientation:

    VERTICAL

  • Actuator Type:

    SLIDE

  • Construction:

    Rectangular

  • Ganging Number:

    1

  • Lead Length:

    3.7 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Terminals:

    3

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -10 °C

  • Package Height:

    5.7 mm

  • Package Length:

    30 mm

  • Package Style:

    Radial

  • Package Width:

    9 mm

  • Rated Power Dissipation (P):

    0.05 W

  • Rated Temperature:

    50 °C

  • Resistance:

    10000 Ω

  • Resistance Law:

    LINEAR

  • Resistor Type:

    POTENTIOMETER

  • Surface Mount:

    NO

  • Technology:

    CARBON

  • Terminal Shape:

    FLAT

  • Tolerance:

    20%

  • Working Voltage:

    100 V

PTA1543-2010CIB103 Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for the PTA1543-2010CIB103 is a rectangular pad with dimensions of 3.3mm x 1.6mm, with a 0.5mm radius corner. The pad should be centered on the component and have a minimum of 0.2mm clearance around the component body.
  • To ensure reliable soldering of the PTA1543-2010CIB103, use a soldering iron with a temperature of 250°C to 260°C, and apply a small amount of solder paste to the PCB pad. Use a soldering technique that minimizes the risk of overheating the component, and avoid applying excessive force or pressure during the soldering process.
  • The maximum operating temperature range for the PTA1543-2010CIB103 is -40°C to 125°C. However, it's recommended to operate the device within a temperature range of -20°C to 85°C for optimal performance and reliability.
  • Yes, the PTA1543-2010CIB103 is designed to withstand high-vibration environments. However, it's recommended to follow proper mounting and soldering techniques to ensure the component remains securely attached to the PCB. Additionally, consider using a vibration-dampening material or a shock-absorbing mounting system to minimize the risk of component damage.
  • To handle ESD protection for the PTA1543-2010CIB103, follow proper ESD handling procedures, such as using an ESD wrist strap or mat, and storing the component in an ESD-protective package. Additionally, consider implementing ESD protection circuits or devices in the system design to prevent ESD damage to the component.
