PTA1543-2010DPB103 - Bourns

Description: Slide Potentiometers 10MM SHAFT NO DET 15MM STRK SNG LIN

Download PTA1543-2010DPB103 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PTA1543-2010DPB103 - Bourns - PCB symbol
click to zoom

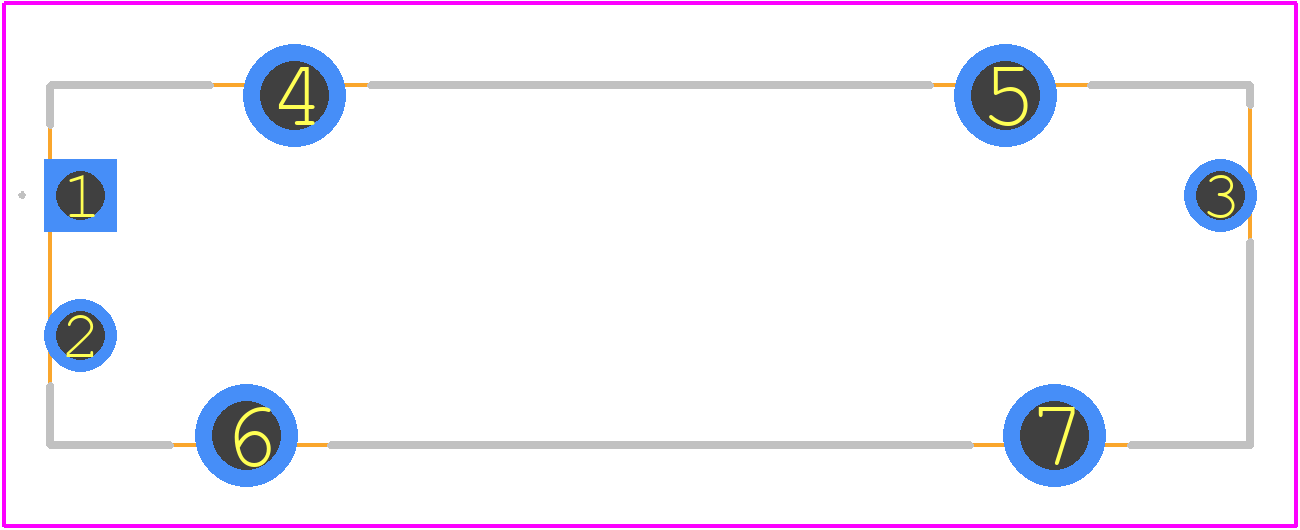

PCB Footprints
PTA1543-2010DPB103 - Bourns PCB footprint - Other - Other - PTA1543-2010DPB103-1
click to zoom
3D Models
PTA1543-2010DPB103 - Bourns - 3D model - Other - PTA1543-2010DPB103-1
click to zoom

PTA1543-2010DPB103 Details

  • Manufacturer Part Number:

    PTA1543-2010DPB103

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.40.80.70

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Bourns Inc

  • YTEOL:

    7

  • Actuator Orientation:

    VERTICAL

  • Actuator Type:

    SLIDE

  • Construction:

    Rectangular

  • Ganging Number:

    1

  • Lead Length:

    3.7 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Terminals:

    3

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -10 °C

  • Package Height:

    5.7 mm

  • Package Length:

    30 mm

  • Package Style:

    Radial

  • Package Width:

    9 mm

  • Rated Power Dissipation (P):

    0.05 W

  • Rated Temperature:

    50 °C

  • Resistance:

    10000 Ω

  • Resistance Law:

    LINEAR

  • Resistor Type:

    POTENTIOMETER

  • Surface Mount:

    NO

  • Technology:

    CARBON

  • Terminal Shape:

    FLAT

  • Tolerance:

    20%

  • Working Voltage:

    100 V

PTA1543-2010DPB103 Frequently Asked Questions (FAQs)

  • Bourns recommends a symmetrical PCB layout with a solid ground plane, and keeping the input and output traces as short as possible to minimize parasitic inductance and capacitance.
  • Follow the recommended soldering profile and use a solder with a melting point below 260°C to prevent damage to the component. Ensure the component is properly aligned and seated on the PCB before soldering.
  • The PTA1543-2010DPB103 is rated for operation from -40°C to +125°C, but derating may be necessary for high-temperature applications. Consult the datasheet for specific derating guidelines.
  • Yes, the PTA1543-2010DPB103 is designed to withstand vibrations up to 10G peak acceleration. However, it's essential to ensure the component is properly secured to the PCB and the PCB is adequately mounted to the system to prevent mechanical stress.
  • Handle the component in an ESD-protected environment, wear an ESD strap, and use ESD-safe packaging and tools to prevent damage from electrostatic discharge.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PTA1543-2010DPB103 Overview

Use the download button to access the PTA1543-2010DPB103 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PTA15, or try a keyword search, such as Variable Resistors
