Bourns provides a recommended PCB layout and land pattern in their application note AN204, which can be found on their website. Following this layout ensures optimal performance, reduced thermal resistance, and minimized parasitic inductance.
To ensure reliable soldering, follow the recommended soldering profile and temperature guidelines provided in the datasheet. Use a solder with a melting point between 180°C to 220°C, and maintain a soldering iron temperature of 250°C to 270°C. Avoid using excessive solder or flux, and ensure the component is properly aligned during the soldering process.
While the datasheet specifies an operating temperature range of -40°C to 150°C, it's essential to note that the component's performance and reliability may degrade above 125°C. For optimal performance, it's recommended to operate the component within the -40°C to 125°C range.
To prevent electrostatic discharge (ESD) damage, handle the component in an ESD-protected environment, wear an ESD wrist strap or use an ESD mat, and ensure all equipment and tools are properly grounded. During assembly, use ESD-protective packaging and follow proper handling procedures to minimize the risk of ESD damage.
Store the component in its original packaging, away from direct sunlight, moisture, and extreme temperatures. Avoid exposing the component to mechanical stress, bending, or flexing, and handle it by the edges to prevent damage to the pins or body.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PTA1543-2015CPB103 Overview

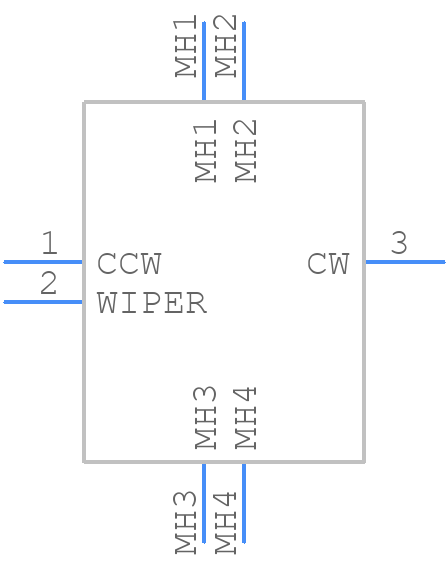

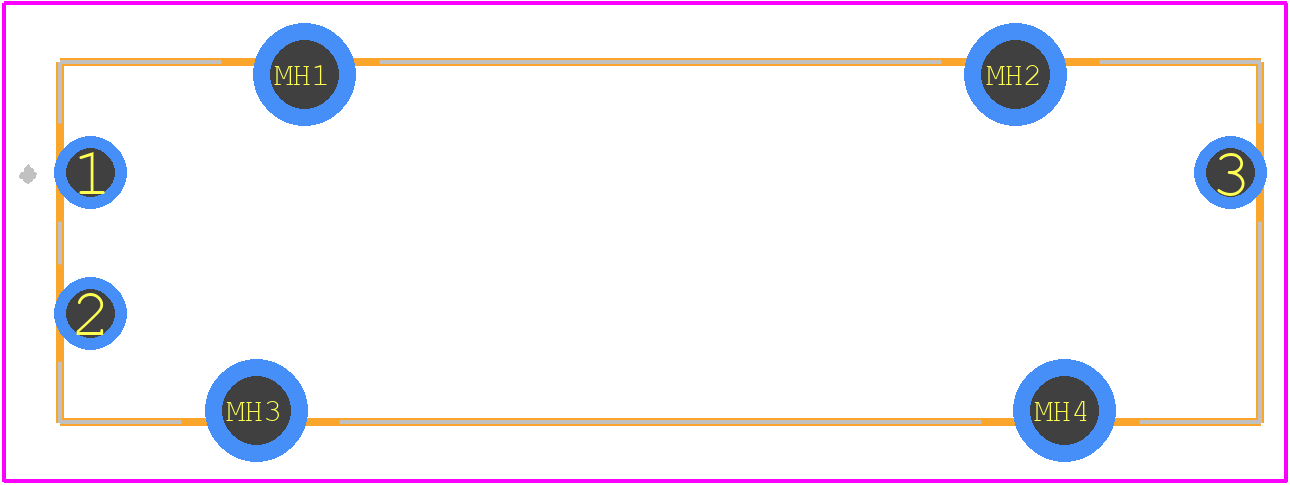

Use the download button to access the PTA1543-2015CPB103 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PTA15,
or try a keyword search, such as Variable Resistors
