Bourns recommends a symmetrical PCB layout with a solid ground plane, and keeping the input and output traces as short as possible to minimize parasitic inductance and capacitance.
Bourns recommends using a shielded layout with a Faraday shield or a shielded enclosure to minimize electromagnetic interference (EMI) and electromagnetic compatibility (EMC) issues.
The PTA2043-2010DPB103 has an operating temperature range of -40°C to +125°C, but derating may be necessary for high-temperature applications.
Yes, the PTA2043-2010DPB103 is designed to withstand high-vibration environments, but it's essential to follow proper mounting and soldering techniques to ensure reliability.
Inrush current can be managed using soft-start circuits, NTC thermistors, or inrush current limiters to prevent excessive current surges during startup.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PTA2043-2010DPB103 Overview

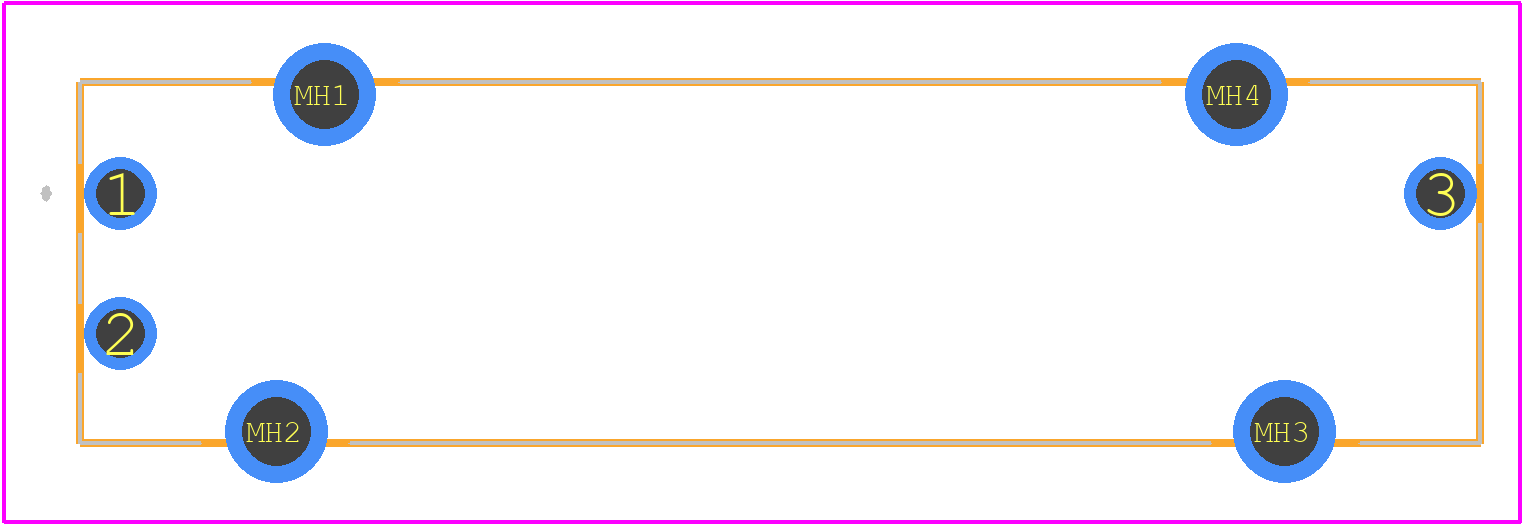

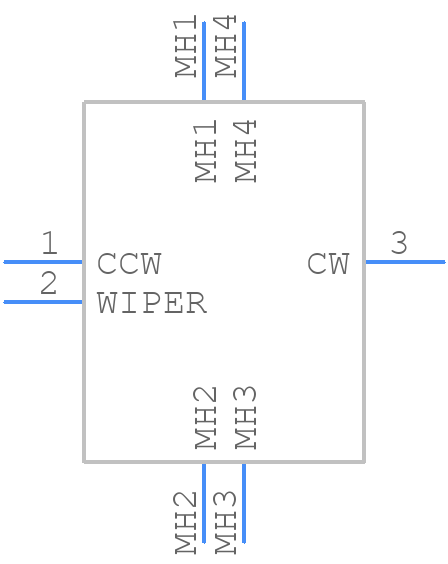

Use the download button to access the PTA2043-2010DPB103 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PTA20,
or try a keyword search, such as Variable Resistors
