PTA2043-2015DPB102 - Bourns

Description: 1 kOhms 0.1W, 1/10W Through Hole Slide Potentiometer Top Adjustment Type

Download PTA2043-2015DPB102 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

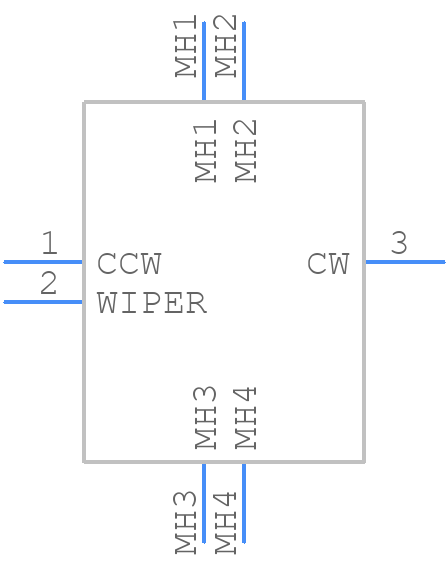

Symbol
PTA2043-2015DPB102 - Bourns - PCB symbol
click to zoom

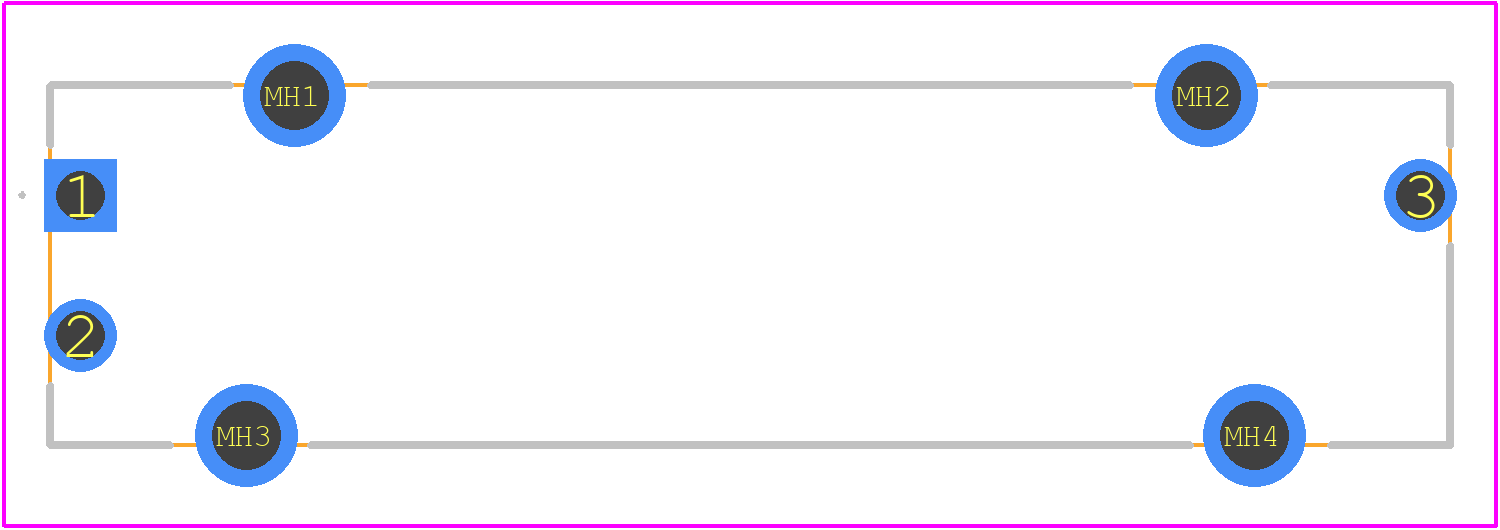

PCB Footprints
PTA2043-2015DPB102 - Bourns PCB footprint - Other - Other - PTA2043-2015DPB102-1
click to zoom
3D Models
PTA2043-2015DPB102 - Bourns - 3D model - Other - PTA2043-2015DPB102-1
click to zoom

PTA2043-2015DPB102 Details

  • Manufacturer Part Number:

    PTA2043-2015DPB102

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.40.80.70

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Bourns Inc

  • YTEOL:

    6.65

  • Actuator Orientation:

    VERTICAL

  • Actuator Type:

    SLIDE

  • Construction:

    Rectangular

  • Ganging Number:

    1

  • Lead Length:

    3.7 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Terminals:

    3

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -10 °C

  • Package Height:

    5.7 mm

  • Package Length:

    35 mm

  • Package Style:

    Radial

  • Package Width:

    9 mm

  • Rated Power Dissipation (P):

    0.1 W

  • Rated Temperature:

    50 °C

  • Resistance:

    1000 Ω

  • Resistance Law:

    LINEAR

  • Resistor Type:

    POTENTIOMETER

  • Surface Mount:

    NO

  • Technology:

    CARBON

  • Terminal Shape:

    FLAT

  • Tolerance:

    30%

  • Working Voltage:

    200 V

PTA2043-2015DPB102 Frequently Asked Questions (FAQs)

  • Bourns recommends a symmetrical PCB layout with a solid ground plane, and keeping the input and output traces as short as possible to minimize parasitic inductance and capacitance.
  • Follow the recommended soldering profile and use a solder with a melting point below 260°C to prevent damage to the component. Ensure the PCB is clean and free of oxidation before soldering.
  • The PTA2043-2015DPB102 is rated for operation from -40°C to +125°C, but derating may be necessary for high-current applications or extreme environmental conditions.
  • Yes, the PTA2043-2015DPB102 is designed to withstand high-vibration and high-shock environments, but it's essential to follow proper mounting and soldering techniques to ensure reliability.
  • Check for proper soldering, ensure the component is not damaged, and verify the input and output voltages are within the recommended specifications. Consult the datasheet and application notes for troubleshooting guidelines.
