PTA2043-2015DPB103 - Bourns

Description: Slide potentiometer linear taper 10K 20% Bourns PTA Series, Linear Potentiometer, 10kΩ, ±20%, 0.1W, Through Hole

Download PTA2043-2015DPB103 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

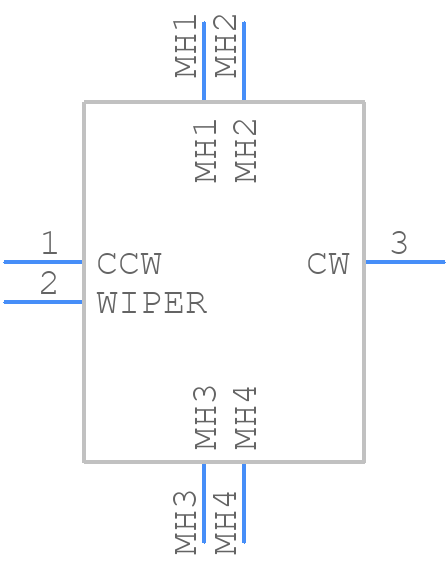

PTA2043-2015DPB103 - Bourns - PCB symbol
click to zoom
PCB Footprints

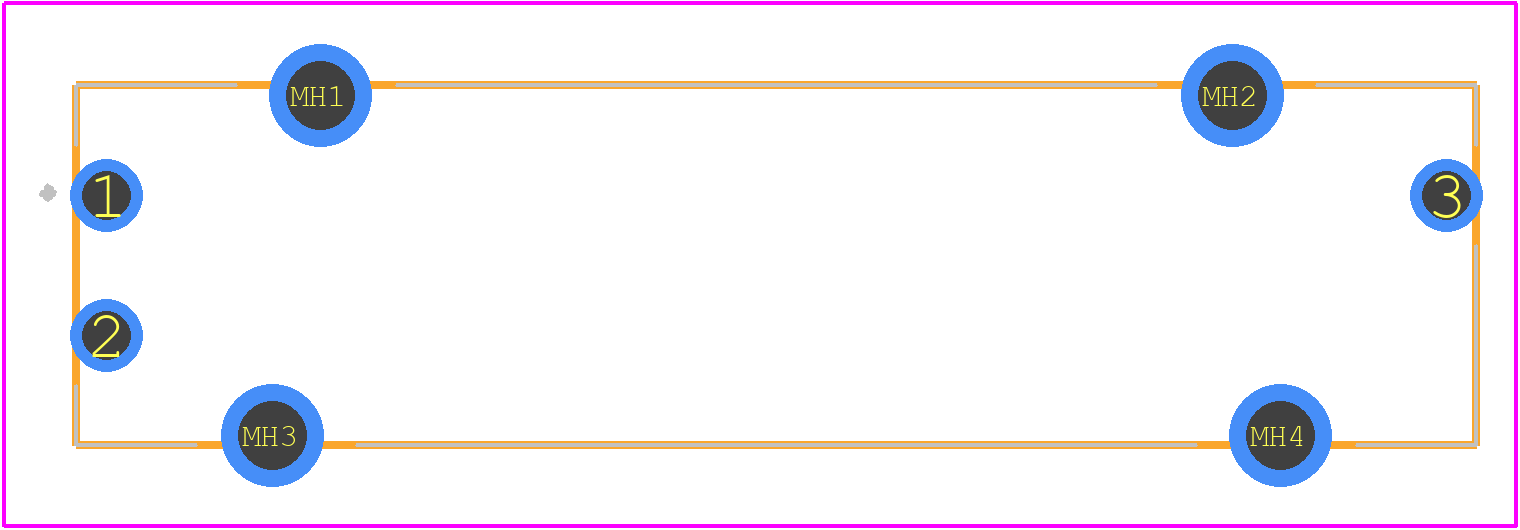

PTA2043-2015DPB103 - Bourns PCB footprint - Other - Other - PTA2043-2015DPB103
click to zoom
3D Models
PTA2043-2015DPB103 - Bourns - 3D model - Other - PTA2043-2015DPB103
click to zoom

PTA2043-2015DPB103 Details

  • Manufacturer Part Number:

    PTA2043-2015DPB103

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.40.80.70

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Bourns Inc

  • YTEOL:

    6.65

  • Actuator Orientation:

    VERTICAL

  • Actuator Type:

    SLIDE

  • Construction:

    Rectangular

  • Ganging Number:

    1

  • Lead Length:

    3.7 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Terminals:

    3

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -10 °C

  • Package Height:

    5.7 mm

  • Package Length:

    35 mm

  • Package Style:

    Radial

  • Package Width:

    9 mm

  • Rated Power Dissipation (P):

    0.1 W

  • Rated Temperature:

    50 °C

  • Resistance:

    10000 Ω

  • Resistance Law:

    LINEAR

  • Resistor Type:

    POTENTIOMETER

  • Surface Mount:

    NO

  • Technology:

    CARBON

  • Terminal Shape:

    FLAT

  • Tolerance:

    20%

  • Working Voltage:

    200 V

PTA2043-2015DPB103 Frequently Asked Questions (FAQs)

  • Bourns recommends a symmetrical PCB layout with a solid ground plane, and keeping the input and output traces as short as possible to minimize parasitic inductance and capacitance.
  • Follow the recommended soldering profile and use a solder with a melting point below 260°C to prevent damage to the component. Ensure the component is properly aligned and seated on the PCB before soldering.
  • The PTA2043-2015DPB103 is rated for operation from -40°C to +125°C, but derating may be necessary for high-current applications or extreme environmental conditions.
  • Yes, the PTA2043-2015DPB103 is designed to meet the requirements of IEC 60068-2-27 for vibration and IEC 60068-2-29 for shock, but additional testing and validation may be necessary for specific applications.
  • Follow standard ESD handling procedures, such as using an ESD wrist strap, mat, or workstation, and ensure the component is stored in an ESD-protective package when not in use.
