PTA2043-2215CPB104 - Bourns

Description: 100 kOhms 0.1W, 1/10W Through Hole Slide Potentiometer Top Adjustment Type

Download PTA2043-2215CPB104 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

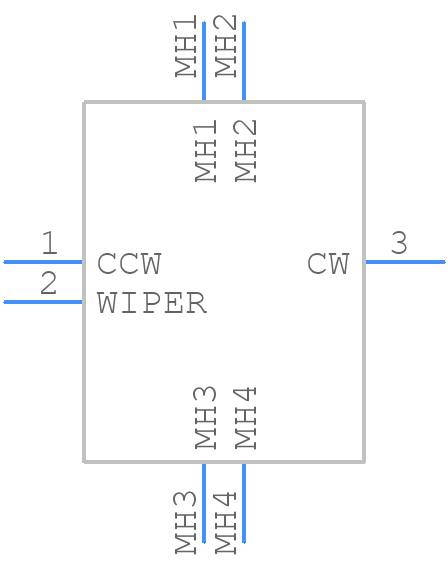

PTA2043-2215CPB104 - Bourns - PCB symbol
click to zoom
PCB Footprints

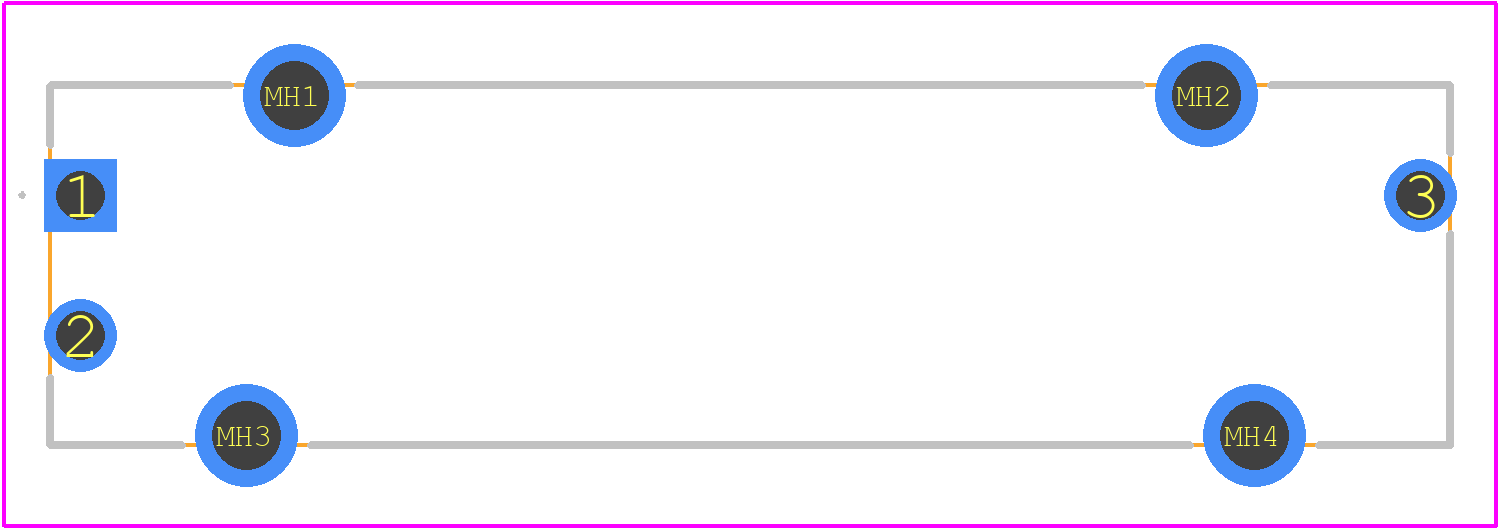

PTA2043-2215CPB104 - Bourns PCB footprint - Other - Other - PTA2043-2215CPB104-1
click to zoom
3D Models
PTA2043-2215CPB104 - Bourns - 3D model - Other - PTA2043-2215CPB104-1
click to zoom

PTA2043-2215CPB104 Details

  • Manufacturer Part Number:

    PTA2043-2215CPB104

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.40.80.70

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Bourns Inc

  • YTEOL:

    6.65

  • Actuator Orientation:

    VERTICAL

  • Actuator Type:

    SLIDE

  • Construction:

    Rectangular

  • Ganging Number:

    1

  • Lead Length:

    3.7 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Terminals:

    3

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -10 °C

  • Package Height:

    5.7 mm

  • Package Length:

    35 mm

  • Package Style:

    Radial

  • Package Width:

    9 mm

  • Rated Power Dissipation (P):

    0.1 W

  • Rated Temperature:

    50 °C

  • Resistance:

    100000 Ω

  • Resistance Law:

    LINEAR

  • Resistor Type:

    POTENTIOMETER

  • Surface Mount:

    NO

  • Technology:

    CARBON

  • Terminal Shape:

    FLAT

  • Tolerance:

    20%

  • Working Voltage:

    200 V

PTA2043-2215CPB104 Frequently Asked Questions (FAQs)

  • Bourns recommends a symmetrical PCB layout with a solid ground plane to minimize electromagnetic interference (EMI) and ensure optimal performance. A minimum of 2 oz copper thickness is recommended for the PCB.
  • Bourns recommends using a soldering iron with a temperature range of 250°C to 260°C and a solder with a melting point of 180°C to 220°C. The component should be soldered within 3 seconds to 5 seconds to prevent thermal damage.
  • The PTA2043-2215CPB104 can operate safely up to 125°C, but the maximum operating temperature range is dependent on the specific application and should be derated accordingly.
  • Bourns recommends handling the component in an ESD-controlled environment and using ESD-protective packaging and materials to prevent damage. The component should be grounded before handling to prevent static buildup.
  • The component should be stored in its original packaging in a dry, cool environment away from direct sunlight. The component should be handled with clean, dry gloves and should not be exposed to moisture or extreme temperatures.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PTA2043-2215CPB104 Overview

Use the download button to access the PTA2043-2215CPB104 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PTA20, or try a keyword search, such as Variable Resistors
