Bourns recommends a symmetrical PCB layout with a solid ground plane to minimize electromagnetic interference (EMI) and ensure optimal performance. A minimum of 2 oz copper thickness is recommended for the PCB.
The PTA3043-2010CPB103 has a maximum operating temperature of 125°C. Ensure proper thermal management by providing adequate airflow, using thermal vias, and keeping the component away from heat sources. A thermal pad or heat sink may be necessary for high-power applications.
Bourns recommends a soldering temperature of 260°C (500°F) with a maximum dwell time of 10 seconds. A soldering iron with a fine tip and a temperature-controlled soldering station is recommended. Avoid using excessive solder or flux, as it can damage the component.
Use a suitable adhesive, such as a thermally conductive epoxy, to secure the component to the PCB. Ensure the adhesive is compatible with the component's materials and follows the manufacturer's instructions. Additionally, consider using mechanical fasteners, such as screws or clips, for added security.
Handle the PTA3043-2010CPB103 with care to prevent electrostatic discharge (ESD) damage. Use an ESD wrist strap, mat, or workstation, and ensure all equipment is properly grounded. Avoid touching the component's pins or handling it in environments with high humidity or static electricity.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PTA3043-2010CPB103 Overview

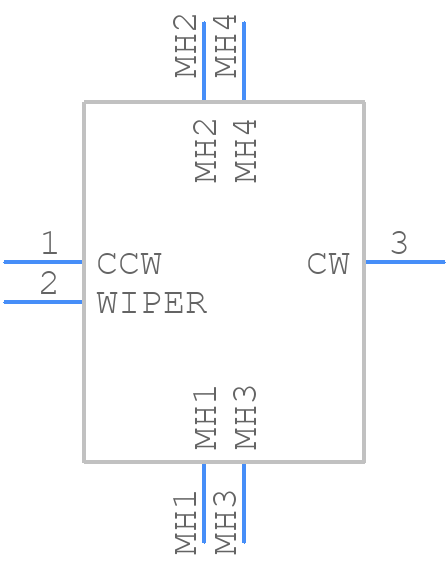

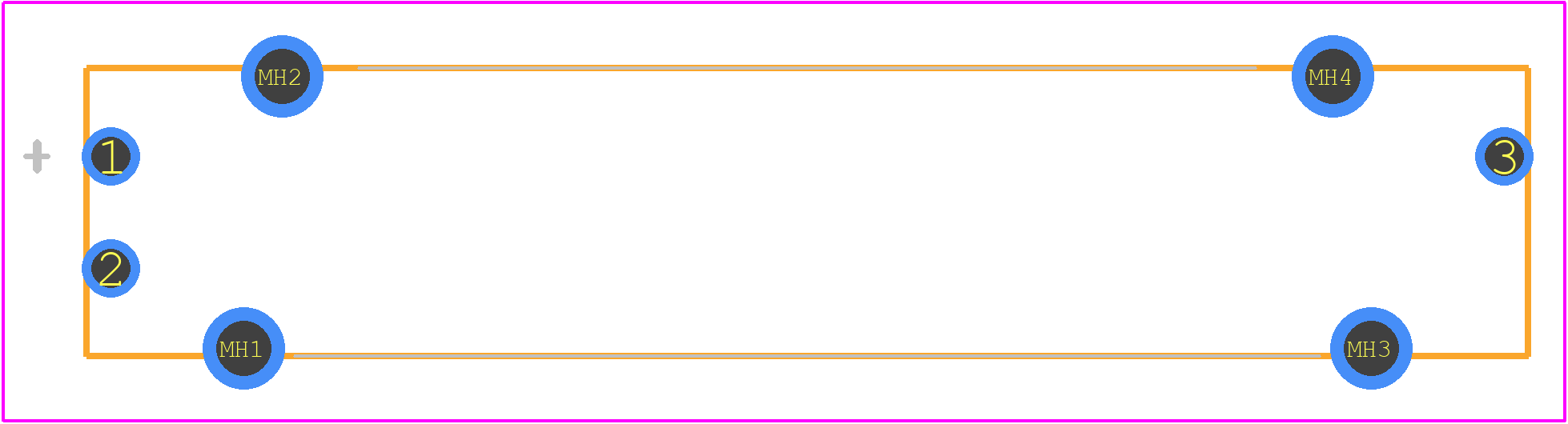

Use the download button to access the PTA3043-2010CPB103 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PTA30,
or try a keyword search, such as Variable Resistors
