PTA3043-2015DPB104 - Bourns

Description: 100 kOhms 0.2W, 1/5W Through Hole Slide Potentiometer Top Adjustment Type, 150 V DC, -10 °C to +50 °C

Download PTA3043-2015DPB104 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PTA3043-2015DPB104 - Bourns - PCB symbol
click to zoom
PCB Footprints

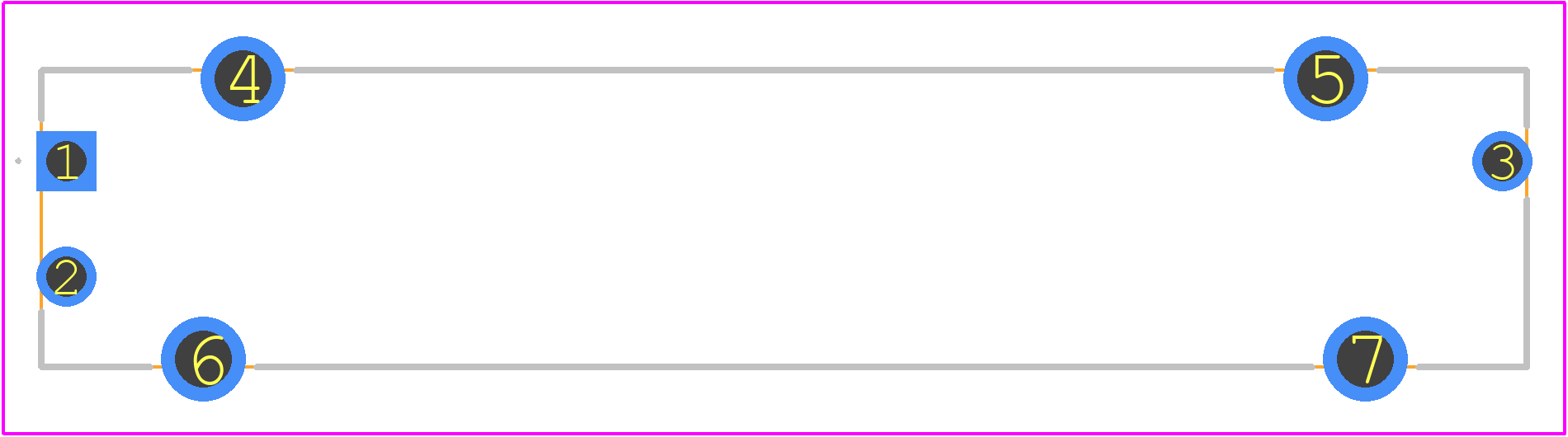

PTA3043-2015DPB104 - Bourns PCB footprint - Other - Other - PTA3043-2015DPB104-2
click to zoom
3D Models
PTA3043-2015DPB104 - Bourns - 3D model - Other - PTA3043-2015DPB104-2
click to zoom

PTA3043-2015DPB104 Details

  • Manufacturer Part Number:

    PTA3043-2015DPB104

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.40.80.70

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Bourns Inc

  • YTEOL:

    6.65

  • Actuator Orientation:

    VERTICAL

  • Actuator Type:

    SLIDE

  • Construction:

    Rectangular

  • Ganging Number:

    1

  • Lead Length:

    3.7 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Terminals:

    3

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -10 °C

  • Package Height:

    5.7 mm

  • Package Length:

    45 mm

  • Package Style:

    Radial

  • Package Width:

    9 mm

  • Rated Power Dissipation (P):

    0.2 W

  • Rated Temperature:

    50 °C

  • Resistance:

    100000 Ω

  • Resistance Law:

    LINEAR

  • Resistor Type:

    POTENTIOMETER

  • Surface Mount:

    NO

  • Technology:

    CARBON

  • Terminal Shape:

    FLAT

  • Tolerance:

    20%

  • Working Voltage:

    200 V

PTA3043-2015DPB104 Frequently Asked Questions (FAQs)

  • Bourns recommends a symmetrical PCB layout with a solid ground plane, and keeping the input and output traces as short as possible to minimize parasitic inductance and capacitance.
  • Follow the recommended soldering profile and use a solder with a melting point below 260°C to prevent damage to the component. Ensure the PCB is clean and free of oxidation before soldering.
  • The PTA3043-2015DPB104 is rated for operation from -40°C to +125°C, but derating may be necessary for high-temperature applications.
  • Yes, the PTA3043-2015DPB104 is designed to withstand vibrations up to 10g peak acceleration, but it's recommended to follow proper mounting and securing procedures to ensure reliability.
  • Follow standard ESD handling procedures, such as using an ESD wrist strap, mat, or workstation, and ensure the PCB is properly grounded during assembly and testing.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PTA3043-2015DPB104 Overview

Use the download button to access the PTA3043-2015DPB104 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PTA30, or try a keyword search, such as Variable Resistors
