Bourns recommends a symmetrical PCB layout with a solid ground plane, and keeping the input and output traces as short as possible to minimize parasitic inductance and capacitance.
Follow the recommended soldering profile and use a solder with a melting point below 260°C to prevent damage to the component. Ensure the component is properly aligned and seated on the PCB before soldering.
The PTA4543-2010CIB103 is rated for operation from -40°C to +125°C, but derating may be necessary for high-power applications or extreme environmental conditions.
While the PTA4543-2010CIB103 is a high-quality component, it may not meet the specific requirements for high-reliability or aerospace applications. Consult with Bourns or a qualified engineer to determine suitability for such applications.
Consult the datasheet and application notes for troubleshooting guidelines. Check for proper PCB layout, soldering, and component orientation. Verify the input and output voltages, and ensure the component is operated within its specified ratings.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PTA4543-2010CIB103 Overview

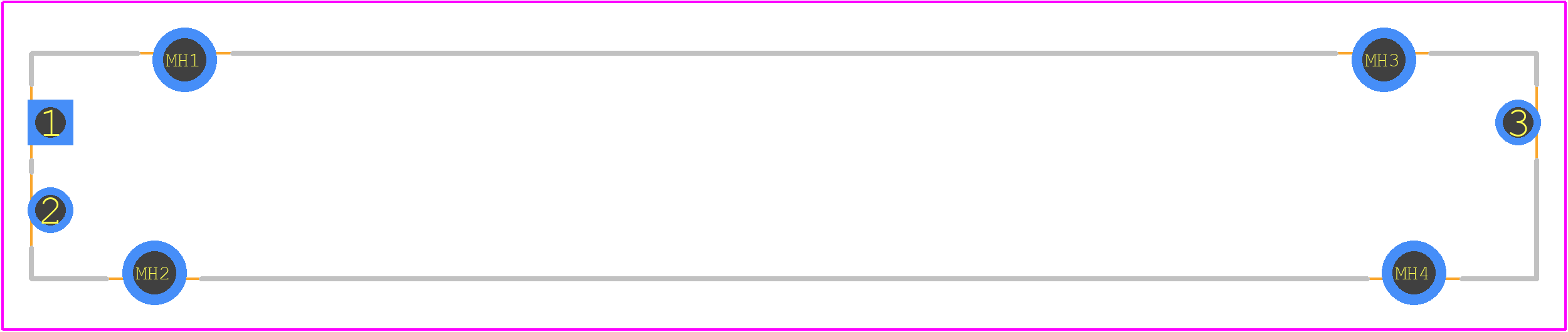

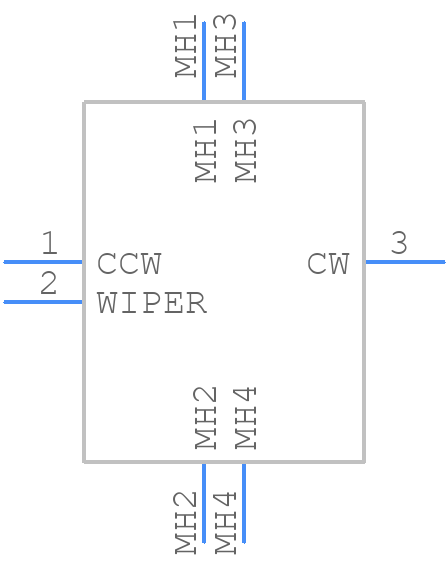

Use the download button to access the PTA4543-2010CIB103 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PTA45,
or try a keyword search, such as Variable Resistors
