PTA4543-2015CPB102 - Bourns

Description: 1 kOhms 0.25W, 1/4W Through Hole Slide Potentiometer Top Adjustment Type

Download PTA4543-2015CPB102 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PTA4543-2015CPB102 - Bourns - PCB symbol
click to zoom
PCB Footprints

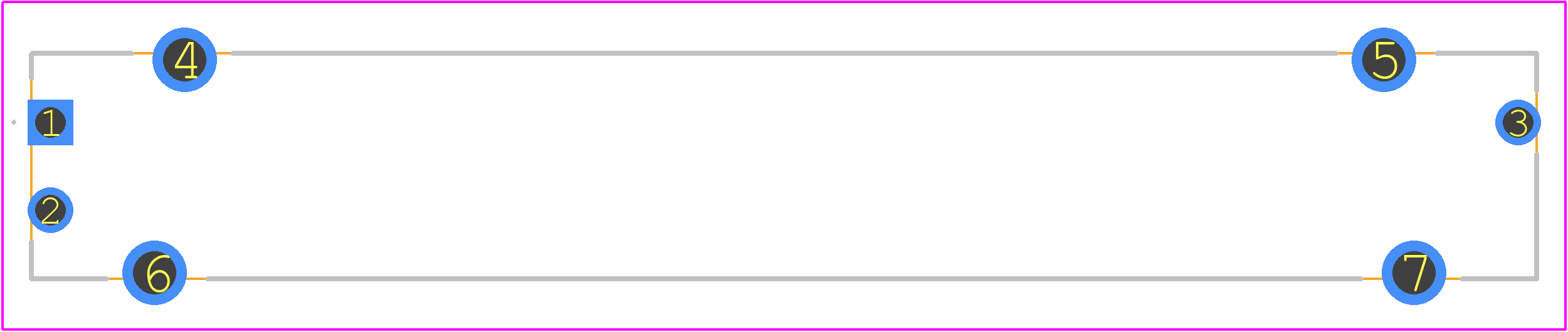

PTA4543-2015CPB102 - Bourns PCB footprint - Other - Other - PTA4543-2015CPB102-4
click to zoom
3D Models
PTA4543-2015CPB102 - Bourns - 3D model - Other - PTA4543-2015CPB102-4
click to zoom

PTA4543-2015CPB102 Details

  • Manufacturer Part Number:

    PTA4543-2015CPB102

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.40.80.70

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Bourns Inc

  • YTEOL:

    6.65

  • Actuator Orientation:

    VERTICAL

  • Actuator Type:

    SLIDE

  • Construction:

    Rectangular

  • Ganging Number:

    1

  • Lead Length:

    3.7 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Terminals:

    3

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -10 °C

  • Package Height:

    5.7 mm

  • Package Length:

    60 mm

  • Package Style:

    Radial

  • Package Width:

    9 mm

  • Rated Power Dissipation (P):

    0.25 W

  • Rated Temperature:

    50 °C

  • Resistance:

    1000 Ω

  • Resistance Law:

    LINEAR

  • Resistor Type:

    POTENTIOMETER

  • Surface Mount:

    NO

  • Technology:

    CARBON

  • Terminal Shape:

    FLAT

  • Tolerance:

    30%

  • Working Voltage:

    200 V
