PTA4553-2015CPB103 - Bourns

Description: Slide Potentiometer, Slide, Low Profile, 10 kohm, ± 20%, 250 mW, Linear, Through Hole

Download PTA4553-2015CPB103 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

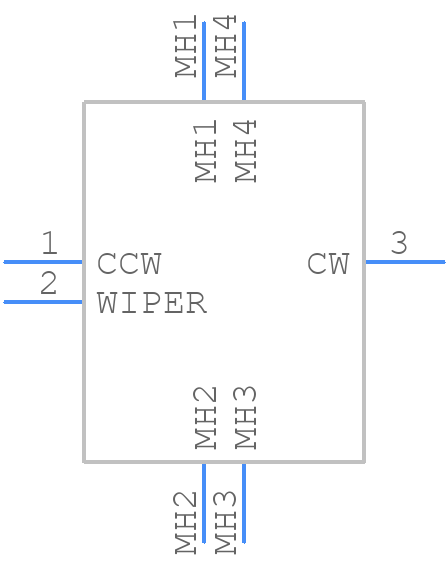

PTA4553-2015CPB103 - Bourns - PCB symbol
click to zoom
PCB Footprints

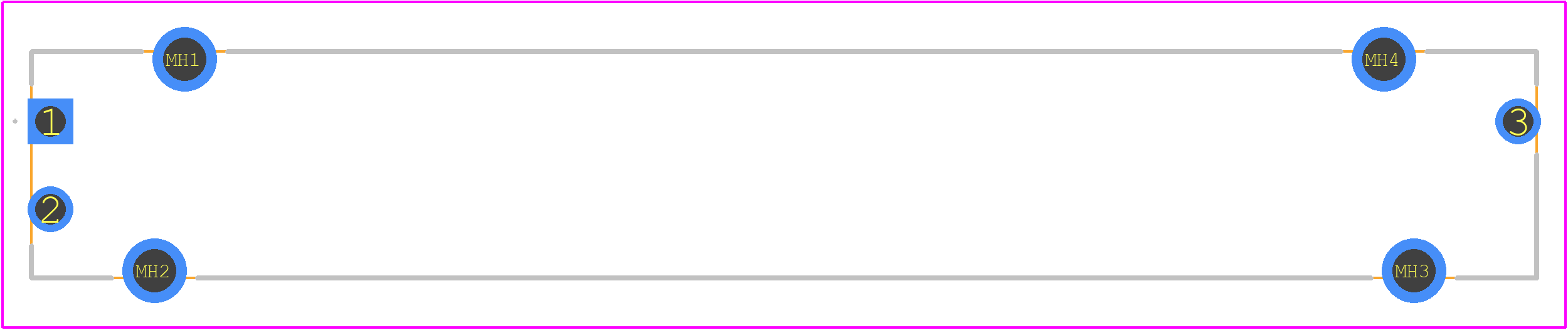

PTA4553-2015CPB103 - Bourns PCB footprint - Other - Other - PTA4553-2015CPB103-6
click to zoom
3D Models
PTA4553-2015CPB103 - Bourns - 3D model - Other - PTA4553-2015CPB103-6
click to zoom

PTA4553-2015CPB103 Details

  • Manufacturer Part Number:

    PTA4553-2015CPB103

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.40.80.70

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Bourns Inc

  • YTEOL:

    6

  • Actuator Orientation:

    VERTICAL

  • Actuator Type:

    SLIDE

  • Construction:

    Rectangular

  • Ganging Number:

    1

  • JESD-609 Code:

    e3

  • Lead Length:

    3.5 mm

  • Mounting Feature:

    PANEL MOUNT

  • Number of Terminals:

    3

  • Operating Temperature-Max:

    50 °C

  • Operating Temperature-Min:

    -10 °C

  • Package Height:

    6.5 mm

  • Package Length:

    60 mm

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    Panel Mount

  • Package Width:

    9 mm

  • Rated Power Dissipation (P):

    0.25 W

  • Rated Temperature:

    50 °C

  • Resistance:

    10000 Ω

  • Resistance Law:

    LINEAR

  • Resistor Type:

    POTENTIOMETER

  • Surface Mount:

    NO

  • Technology:

    CARBON COMPOSITION

  • Terminal Finish:

    TIN

  • Terminal Shape:

    BINDING POST

  • Tolerance:

    20%

  • Working Voltage:

    200 V
