Bourns recommends a symmetrical PCB layout with a solid ground plane, and keeping the input and output traces as short as possible to minimize parasitic inductance and capacitance. Additionally, it's recommended to use a common-mode choke or a ferrite bead to filter out high-frequency noise.
To ensure reliability in high-temperature applications, it's essential to follow proper derating guidelines, ensure good thermal management, and avoid exceeding the maximum operating temperature of 125°C. Additionally, consider using a thermally conductive material, such as a heat sink or thermal pad, to dissipate heat away from the device.
The PTA6043-2015DPA103 can withstand surge currents up to 100 A for 1 ms, as per the IEC 61000-4-5 standard. However, it's essential to ensure that the device is properly sized and protected to handle the expected surge currents in the application.
Yes, the PTA6043-2015DPA103 can be used in a redundant or parallel configuration to increase the overall power handling capability. However, it's crucial to ensure that the devices are properly matched, and the system is designed to handle the increased power and thermal requirements.
The typical lead time for the PTA6043-2015DPA103 is 8-12 weeks, and the minimum order quantity (MOQ) is 1,000 pieces. However, these values may vary depending on the region, distributor, and availability, so it's recommended to check with the supplier or distributor for the most up-to-date information.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
PTA6043-2015DPA103 Overview

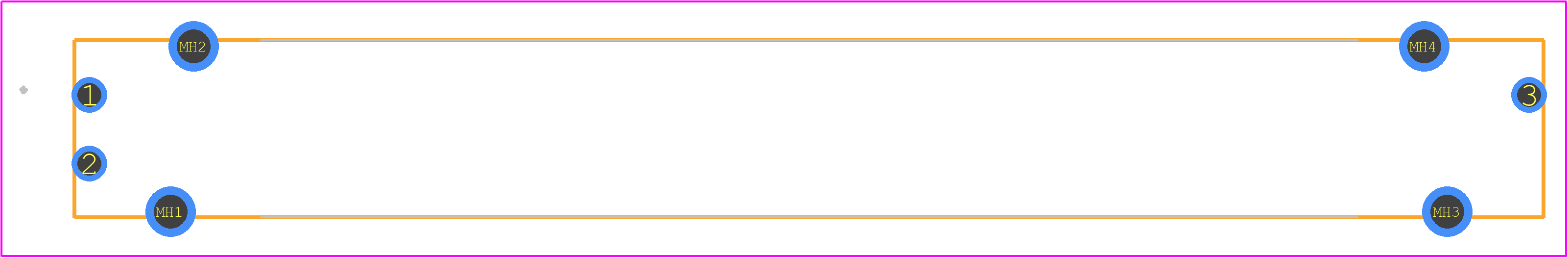

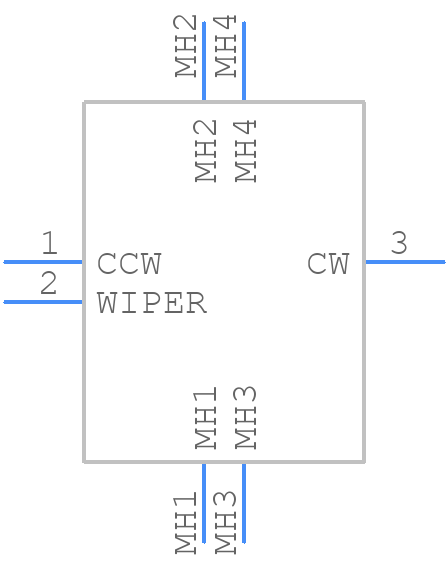

Use the download button to access the PTA6043-2015DPA103 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PTA60,
or try a keyword search, such as Variable Resistors
Suggested Parts
If you searched for PTA6043-2015DPA103, you might also be interested in these parts:
