PTB0143-2010BPB103 - Bourns

Description: Bourns PTB0143-2010BPB103 1 Gang Slide Carbon Potentiometer, 10kΩ, ±20%, 0.5W, Linear

Download PTB0143-2010BPB103 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

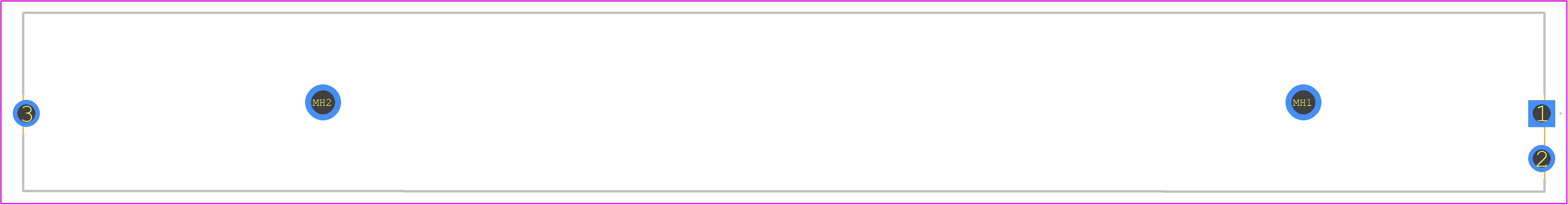

PTB0143-2010BPB103 - Bourns PCB footprint - Other - Other - PTB0143-2010BPB103-1
click to zoom
3D Models
PTB0143-2010BPB103 - Bourns  - 3D model - Other - PTB0143-2010BPB103-1
click to zoom

PTB0143-2010BPB103 Details

  • Manufacturer Part Number:

    PTB0143-2010BPB103

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.40.80.70

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Bourns Inc

  • YTEOL:

    6.65

  • Actuator Orientation:

    VERTICAL

  • Actuator Type:

    SLIDE

  • Construction:

    Metal Housing

  • Ganging Number:

    1

  • JESD-609 Code:

    e3

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Terminals:

    3

  • Operating Temperature-Max:

    60 °C

  • Operating Temperature-Min:

    -10 °C

  • Package Height:

    8 mm

  • Package Length:

    128 mm

  • Package Style:

    PCB Mount

  • Package Width:

    15 mm

  • Rated Power Dissipation (P):

    0.5 W

  • Resistance:

    10000 Ω

  • Resistance Law:

    LINEAR

  • Resistor Type:

    POTENTIOMETER

  • Surface Mount:

    NO

  • Technology:

    CARBON

  • Terminal Finish:

    MATTE TIN

  • Terminal Shape:

    FLAT

  • Tolerance:

    20%

  • Working Voltage:

    500 V

PTB0143-2010BPB103 Frequently Asked Questions (FAQs)

  • Bourns provides a recommended PCB layout and land pattern in their application notes. It's essential to follow these guidelines to ensure proper thermal management, minimize parasitic inductance, and optimize performance.
  • To minimize electromagnetic interference (EMI), keep the inductor at least 5 mm away from sensitive components. You can also use shielding techniques, such as copper tape or mu-metal shielding, to contain the magnetic field.
  • While the datasheet specifies a maximum rated current, it's essential to ensure the voltage across the inductor doesn't exceed the specified maximum. Exceeding this voltage can lead to premature failure or reduced lifespan.
  • The self-resonant frequency can affect the inductor's performance. To mitigate this, use a series resistor or capacitor to dampen the resonance. You can also use a different inductor with a higher self-resonant frequency.
  • Store the inductors in their original packaging, away from direct sunlight and moisture. Handle them by the body, avoiding touching the leads or core. Use anti-static wrist straps and mats to prevent electrostatic discharge damage.
