The recommended torque is 0.5 Nm to 1.5 Nm, depending on the panel material and thickness. It's essential to consult the panel manufacturer's guidelines for specific torque recommendations.
Yes, the PTC15NV02-103A2020 is designed to withstand vibrations up to 10g (IEC 60068-2-6) and can be used in high-vibration environments. However, it's crucial to ensure proper mounting and screwing to prevent loosening or damage.
The PTC15NV02-103A2020 is rated for operation in temperatures ranging from -40°C to 125°C and can withstand humidity up to 95% RH. However, it's essential to consult the datasheet and environmental testing standards (e.g., IEC 60068-2-1) to ensure the component meets the specific requirements of your application.
The recommended wire size is 0.5 mm² to 1.5 mm² (AWG 20 to AWG 16), and the wire type should be a stranded copper wire with a temperature rating of at least 125°C. It's essential to consult the datasheet and relevant wiring standards (e.g., IEC 60344) for specific recommendations.
The PTC15NV02-103A2020 is designed to meet safety standards, such as IEC 61010-1, and can be used in safety-critical applications. However, it's essential to consult the datasheet, relevant safety standards, and perform a thorough risk assessment to ensure the component meets the specific requirements of your application.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PTC15NV02-103A2020 Overview

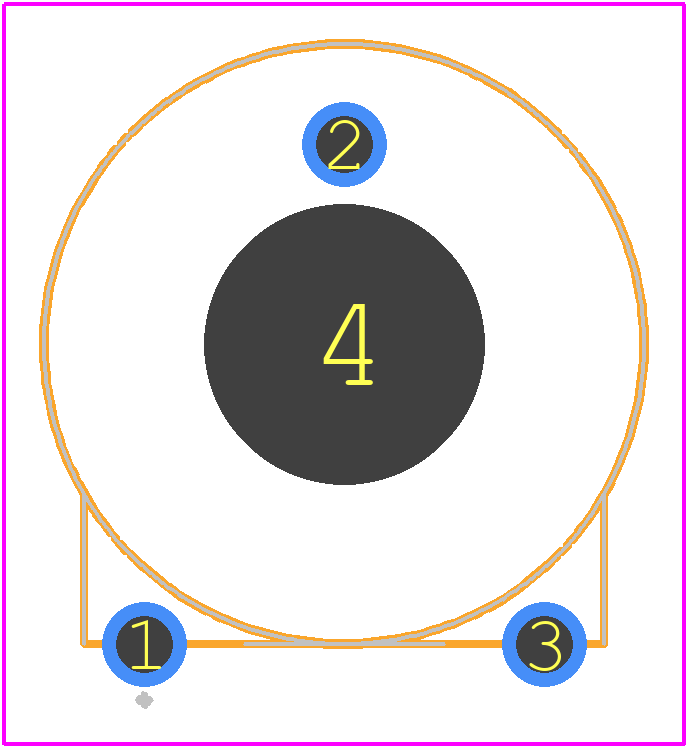

Use the download button to access the PTC15NV02-103A2020 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like PTC15,
or try a keyword search, such as Variable Resistors
