PTD904-1015F-A104 - Bourns

Description: Res Carbon Film POT 100K Ohm 10% 0.025W 1(Elec)/1(Mech)Turns 6mm (32.2 X 9.5 X 11.3mm) Pin Panel Mount/Through Hole Automotive

Download PTD904-1015F-A104 Model

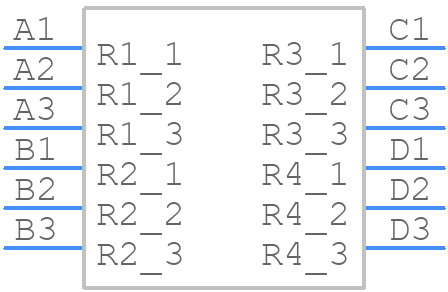

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

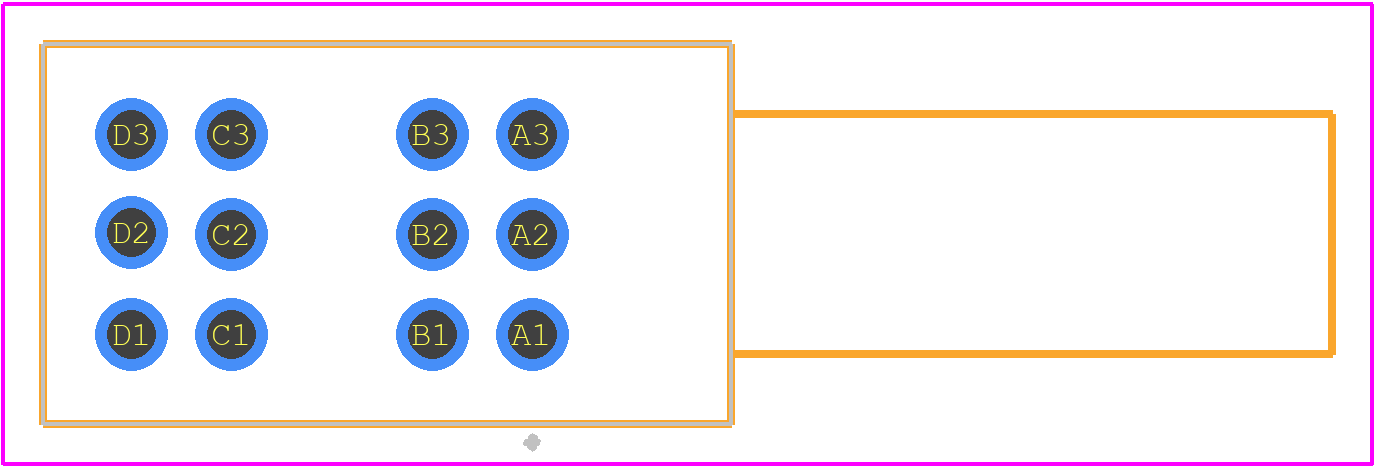

PTD904-1015F-A104 - Bourns PCB footprint - Other - Other - PTD904-1015K-B103-2
click to zoom
3D Models
PTD904-1015F-A104 - Bourns  - 3D model - Other - PTD904-1015K-B103-2
click to zoom

PTD904-1015F-A104 Details

  • Manufacturer Part Number:

    PTD904-1015F-A104

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.40.80.70

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Bourns Inc

  • YTEOL:

    6.65

  • Actuator Orientation:

    HORIZONTAL

  • Actuator Type:

    SHAFT

  • Additional Feature:

    RATED AC VOLTAGE (V): 150

  • Construction:

    Rectangular

  • Ganging Number:

    4

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Terminals:

    12

  • Number of Turns:

    1

  • Operating Temperature-Max:

    50 °C

  • Operating Temperature-Min:

    -10 °C

  • Package Height:

    11.3 mm

  • Package Length:

    17.2 mm

  • Package Style:

    Radial

  • Package Width:

    9.5 mm

  • Rated Power Dissipation (P):

    0.025 W

  • Resistance:

    100000 Ω

  • Resistance Law:

    AUDIO

  • Resistor Type:

    POTENTIOMETER

  • Rotational Angle:

    300 deg

  • Surface Mount:

    NO

  • Technology:

    CARBON

  • Terminal Shape:

    FLAT

  • Tolerance:

    10%

  • Working Voltage:

    20 V

PTD904-1015F-A104 Frequently Asked Questions (FAQs)

  • Bourns provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure optimal performance, minimize thermal resistance, and prevent electrical noise.
  • Proper thermal management is crucial for the PTD904-1015F-A104. Ensure good airflow, use a heat sink if necessary, and follow the recommended PCB layout and land pattern. You can also consider using thermal interface materials to reduce thermal resistance.
  • The PTD904-1015F-A104 has an operating temperature range of -40°C to +125°C. However, it's essential to note that the device's performance and reliability may degrade at extreme temperatures. Consult the datasheet and application notes for more information.
  • The PTD904-1015F-A104 is designed to withstand certain levels of vibration and shock. However, it's crucial to consult the datasheet and application notes for specific guidelines on vibration and shock tolerance. You may also need to consider additional mechanical support or mounting options.
  • The PTD904-1015F-A104 is sensitive to electrostatic discharge (ESD). Handle the device with ESD-protective equipment, such as wrist straps, mats, and bags. Ensure that your workspace and tools are ESD-safe, and follow proper handling and storage procedures.
