PTHF25-59H - API Delevan

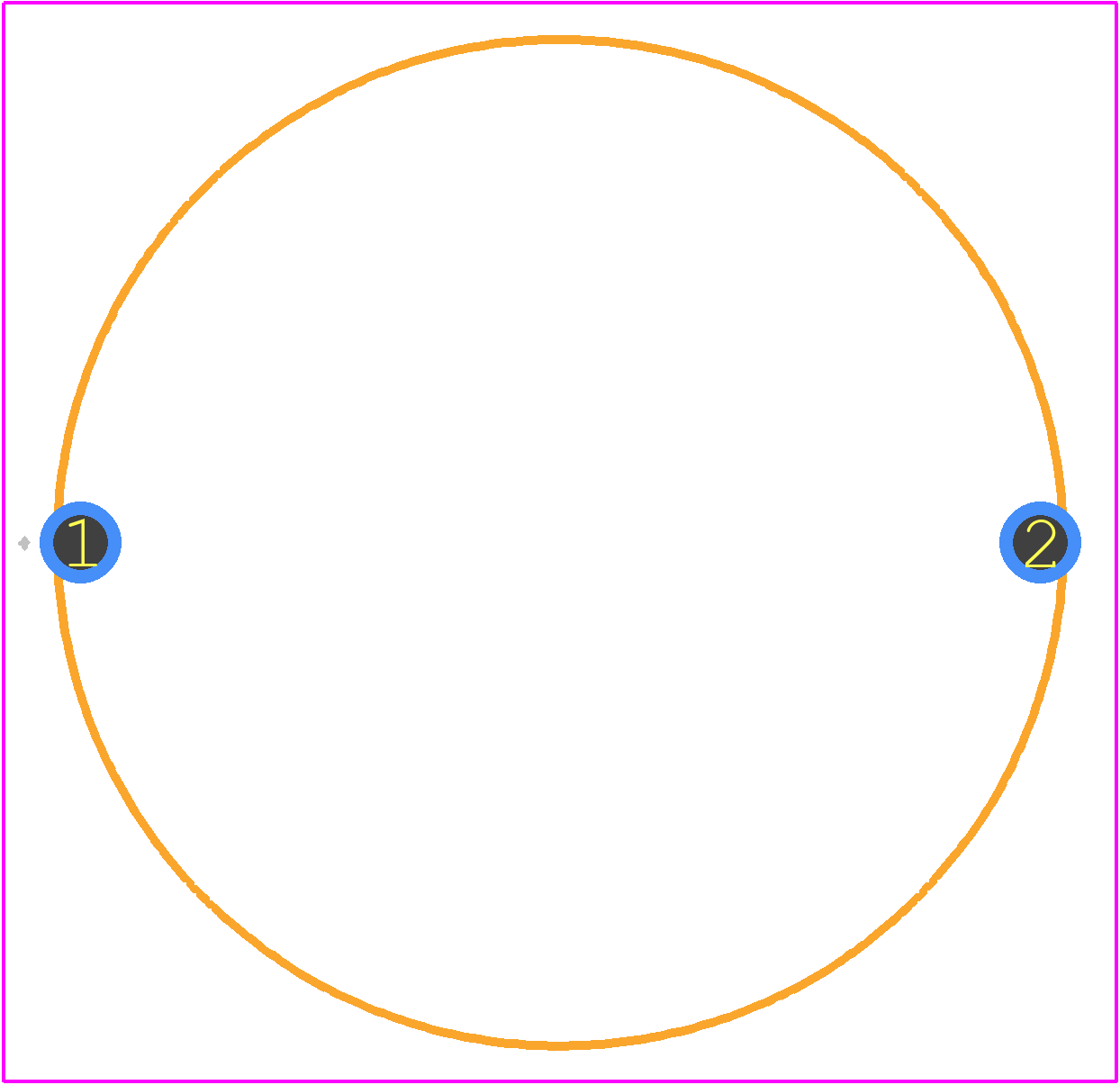

PTHF25-59H Details

• Manufacturer Part Number:

  PTHF25-59H

• Pbfree Code:

  No

• Part Life Cycle Code:

  Active

• Package Description:

  RADIAL LEADED

• ECCN Code:

  EAR99

• HTS Code:

  8504.50.80.00

• Manufacturer:

  API Delevan

• YTEOL:

  5.03

• Construction:

  Toroidal

• DC Resistance:

  0.011 Ω

• Inductance-Nom (L):

  25 µH

• Inductor Application:

  POWER INDUCTOR

• Inductor Type:

  GENERAL PURPOSE INDUCTOR

• JESD-609 Code:

  e0

• Lead Diameter:

  1.3 mm

• Lead Length:

  12.7 mm

• Lead Spacing:

  26.67 mm

• Number of Functions:

  1

• Number of Terminals:

  2

• Package Diameter:

  27.94 mm

• Package Length:

  12.06 mm

• Package Style:

  Radial

• Rated Current-Max:

  9.8 A

• Self Resonance Frequency:

  8 MHz

• Shape/Size Description:

  DISK PACKAGE

• Shielded:

  YES

• Surface Mount:

  NO

• Terminal Finish:

  Tin/Lead (Sn/Pb)

• Terminal Placement:

  RADIAL

• Terminal Shape:

  WIRE

• Test Frequency:

  0.001 MHz

• Tolerance:

  10%
