Bourns recommends a symmetrical PCB layout with a solid ground plane to minimize electromagnetic interference (EMI) and ensure optimal performance. A minimum of 2 oz copper thickness is recommended for the PCB.
Bourns recommends following standard ESD handling procedures, such as using an ESD wrist strap or mat, and storing the components in an ESD-protected environment. Additionally, the component should be handled by the package, not the leads, to prevent damage.
While the datasheet specifies an operating temperature range of -40°C to 125°C, it's essential to note that the component's performance may degrade at extreme temperatures. It's recommended to derate the component's performance by 1% per degree Celsius above 85°C.
Yes, the PTL01-15R0-103B1 is designed to withstand vibrations up to 10 G peak acceleration. However, it's recommended to follow proper mounting and soldering techniques to ensure the component remains securely attached to the PCB.
Bourns recommends following a systematic troubleshooting approach, starting with visual inspection for signs of physical damage or contamination. Next, verify the component's electrical connections and ensure proper soldering. If issues persist, consult the datasheet and application notes or contact Bourns' technical support.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PTL01-15R0-103B1 Overview

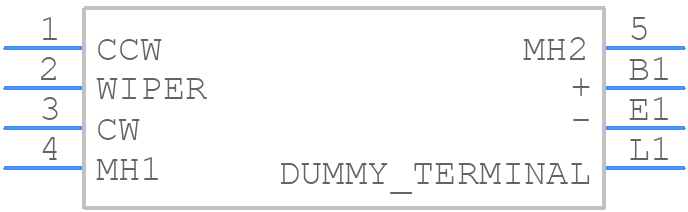

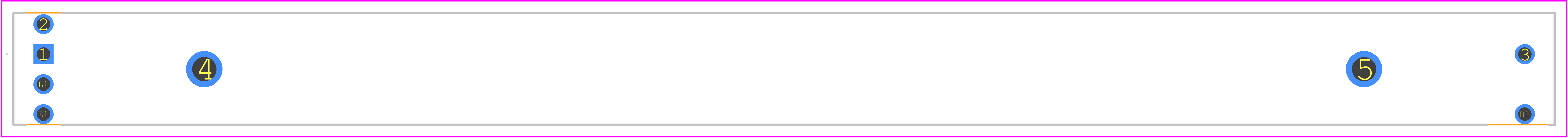

Use the download button to access the PTL01-15R0-103B1 schematic symbol, PCB footprint, and 3D model.
