PTL30-15A1-102B1 - Bourns

Description: Res Carbon Film POT 1K Ohm 20% 0.1W(1/10W) (45 X 9 X 22mm) Pin Thru-Hole

Download PTL30-15A1-102B1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

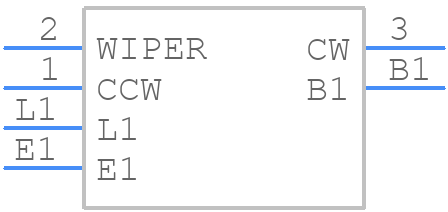

PTL30-15A1-102B1 - Bourns - PCB symbol
click to zoom
PCB Footprints

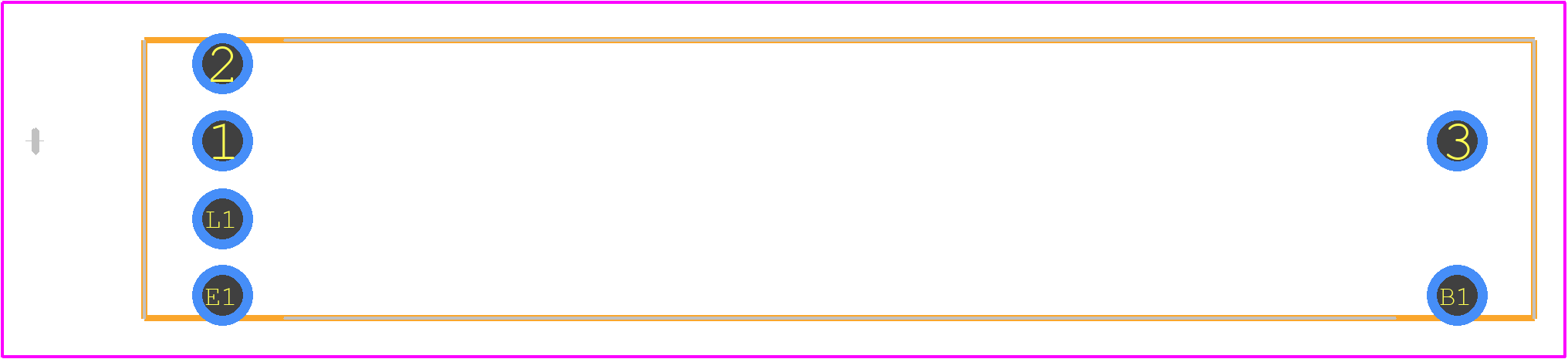

PTL30-15A1-102B1 - Bourns PCB footprint - Other - Other - PTL30-15A1-102B1-1
click to zoom
3D Models
PTL30-15A1-102B1 - Bourns - 3D model - Other - PTL30-15A1-102B1-1
click to zoom

PTL30-15A1-102B1 Details

  • Manufacturer Part Number:

    PTL30-15A1-102B1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.40.80.70

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Bourns Inc

  • YTEOL:

    6.65

  • Actuator Type:

    SLIDE

  • Construction:

    Rectangular

  • Ganging Number:

    1

  • JESD-609 Code:

    e3

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    55 °C

  • Operating Temperature-Min:

    -10 °C

  • Package Height:

    7 mm

  • Package Length:

    45 mm

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    PCB Mount

  • Package Width:

    9 mm

  • Rated Power Dissipation (P):

    0.05 W

  • Rated Temperature:

    70 °C

  • Resistance:

    1000 Ω

  • Resistance Law:

    LINEAR

  • Resistor Type:

    POTENTIOMETER

  • Surface Mount:

    NO

  • Technology:

    CARBON

  • Terminal Finish:

    MATTE TIN

  • Terminal Shape:

    FLAT

  • Tolerance:

    20%

PTL30-15A1-102B1 Frequently Asked Questions (FAQs)

  • The operating temperature range of the PTL30-15A1-102B1 is -40°C to 125°C.
  • Yes, the PTL30-15A1-102B1 is RoHS compliant, meaning it meets the European Union's Restriction of Hazardous Substances directive.
  • The recommended PCB layout for the PTL30-15A1-102B1 involves placing the device on a solid ground plane, using a minimum of 2 oz. copper thickness, and keeping the traces as short as possible to minimize inductance.
  • Yes, the PTL30-15A1-102B1 is suitable for high-reliability applications, such as aerospace, defense, and medical devices, due to its high-quality construction and rigorous testing.
  • To prevent damage, handle the PTL30-15A1-102B1 by the body only, avoid touching the leads or pins, and use an anti-static wrist strap or mat during assembly.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PTL30-15A1-102B1 Overview

Use the download button to access the PTL30-15A1-102B1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PTL30, or try a keyword search, such as Potentiometers
