PTL45-15O1-503B2 - Bourns

Description: Slide Potentiometers 50Kohms Travel=45mm Center Detent

Download PTL45-15O1-503B2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PTL45-15O1-503B2 - Bourns - PCB symbol
click to zoom
PCB Footprints

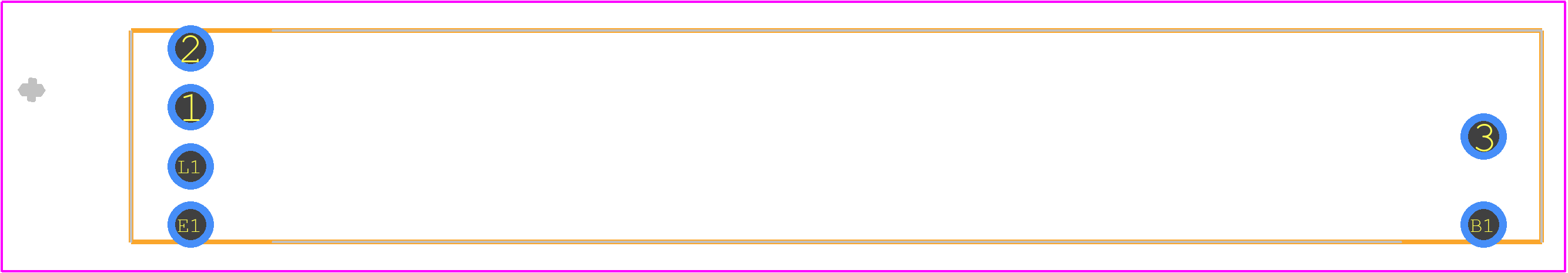

PTL45-15O1-503B2 - Bourns PCB footprint - Other - Other - PTL45-15O1-503B2-2
click to zoom
3D Models
PTL45-15O1-503B2 - Bourns - 3D model - Other - PTL45-15O1-503B2-2
click to zoom

PTL45-15O1-503B2 Details

  • Manufacturer Part Number:

    PTL45-15O1-503B2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.40.80.70

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Bourns Inc

  • YTEOL:

    6.65

  • Actuator Type:

    SLIDE

  • Construction:

    Rectangular

  • Ganging Number:

    1

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    55 °C

  • Operating Temperature-Min:

    -10 °C

  • Package Height:

    7 mm

  • Package Length:

    60 mm

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    PCB Mount

  • Package Width:

    9 mm

  • Rated Power Dissipation (P):

    0.06 W

  • Rated Temperature:

    70 °C

  • Resistance:

    50000 Ω

  • Resistance Law:

    LINEAR

  • Resistor Type:

    POTENTIOMETER

  • Surface Mount:

    NO

  • Technology:

    CARBON

  • Terminal Shape:

    FLAT

  • Tolerance:

    20%
