PTM902-020S-502B2 - Bourns

Description: Potentiometers 5Kohms Dual Gang

Download PTM902-020S-502B2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

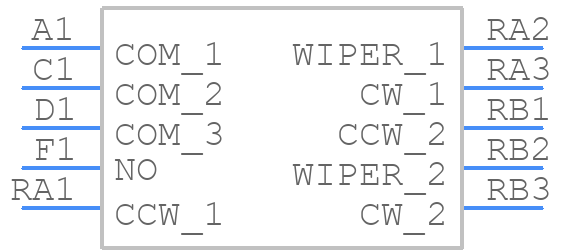

PTM902-020S-502B2 - Bourns - PCB symbol
click to zoom
PCB Footprints

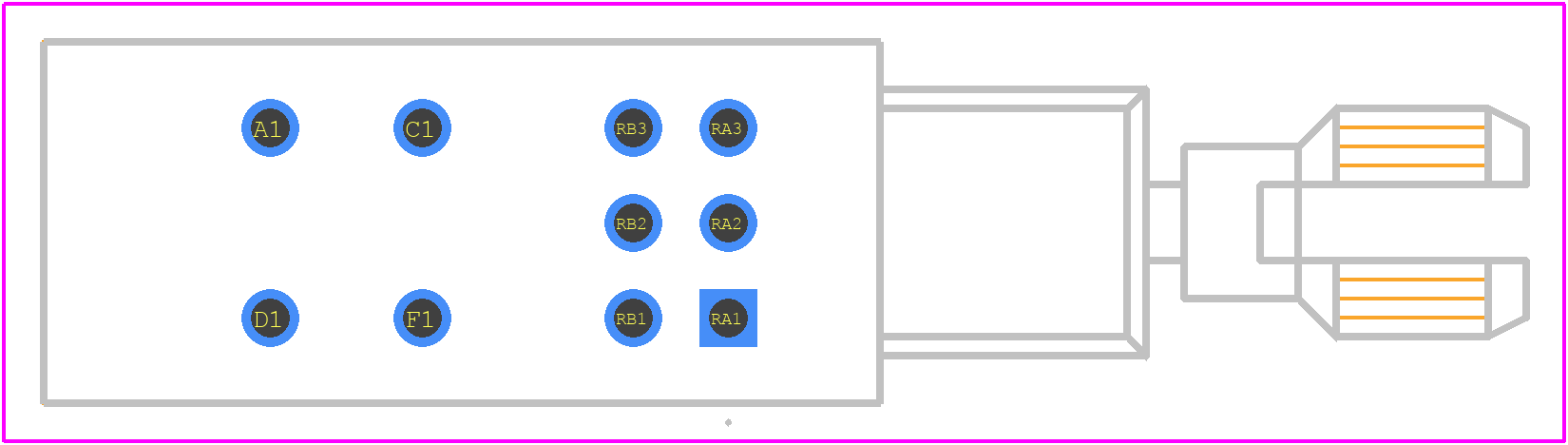

PTM902-020S-502B2 - Bourns PCB footprint - Other - Other - PTM902-020S-502B2-4
click to zoom

PTM902-020S-502B2 Details

  • Manufacturer Part Number:

    PTM902-020S-502B2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Not Compliant

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • Manufacturer:

    Bourns Inc

  • JESD-609 Code:

    e3

  • Resistor Type:

    POTENTIOMETER

  • Terminal Finish:

    Tin (Sn)

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PTM902-020S-502B2 Overview

Use the download button to access the PTM902-020S-502B2 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like PTM90, or try a keyword search, such as Variable Resistors
