Bourns provides a recommended PCB layout and land pattern in their application note AN164, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
The PTR902-2020F-A503 is designed to minimize electromagnetic interference (EMI) and radio-frequency interference (RFI). The transformer's shielded construction and internal Faraday shield help to reduce electromagnetic radiation and susceptibility to external noise.
While the datasheet specifies an operating temperature range of -40°C to +125°C, it's essential to note that the transformer's performance and reliability may degrade at extreme temperatures. It's recommended to operate the transformer within a temperature range of -20°C to +100°C for optimal performance.
The PTR902-2020F-A503 is rated for a maximum voltage of 250 VRMS. While it can handle high-voltage applications, it's crucial to ensure that the transformer is properly designed and tested to meet the specific requirements of the application. Consult with a qualified engineer or Bourns' technical support for guidance.
The PTR902-2020F-A503 meets various safety and regulatory standards, including UL, IEC, and RoHS. However, it's the designer's responsibility to ensure that the transformer is used in a manner that meets the specific requirements of the application and target market. Consult with a qualified engineer or regulatory expert for guidance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PTR902-2020F-A503 Overview

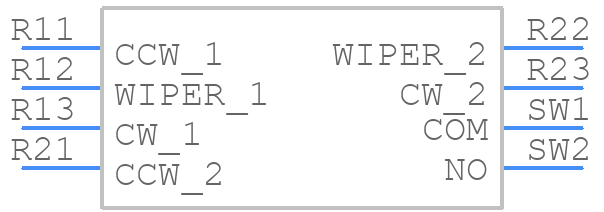

Use the download button to access the PTR902-2020F-A503 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PTR90,
or try a keyword search, such as Variable Resistors
