PTS820J15KPSMTRLFS - LITTELFUSE

Description: Tactile Switches Microminiature SMT Top Actuated

Download PTS820J15KPSMTRLFS Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this PTS820J15KPSMTRLFS model

Email notifications will be applied after download.

Send part feedback

Symbol

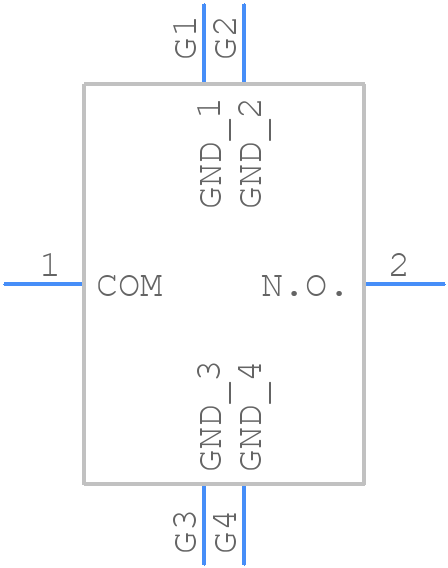

PTS820J15KPSMTRLFS - LITTELFUSE - PCB symbol

PCB Footprints

PTS820J15KPSMTRLFS - LITTELFUSE PCB footprint - Other - Other - PTS820J15KPSMTRLFS-2

3D Models

PTS820J15KPSMTRLFS - LITTELFUSE - 3D model - Other - PTS820J15KPSMTRLFS-2

Datasheet Download Datasheet
Stock & Prices Price & Stock for PTS820J15KPSMTRLFS
Part Number PTS820J15KPSMTRLFS
Manufacturer LITTELFUSE
Pin Count 6
Part Category Switch
Package Category Other
Footprint Name Other - PTS820J15KPSMTRLFS-2
Released Date May 27, 2019
Last Modified Date Apr 10, 2026 9:41 PM UTC
Pinout / Pin List Click Here (Member Only)

PTS820J15KPSMTRLFS Details

Manufacturer Part Number:
PTS820J15KPSMTRLFS
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.50.70.00
Manufacturer:
Littelfuse Inc
Switch Type:
KEYPAD SWITCH

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

PTS820J15KPSMTRLFS Overview

Use the download button to access the PTS820J15KPSMTRLFS schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like PTS82, or try a keyword search, such as Keypad Switches
