PTS820J25KSMTR LFS - LITTELFUSE

Description: Tactile Switch SPST-NO Top Actuated Surface Mount, 12 VDC, 50 mA, 100 MΩ, -40°C ~ 85°C

Download PTS820J25KSMTR LFS Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this PTS820J25KSMTR LFS model

Email notifications will be applied after download.

Send part feedback

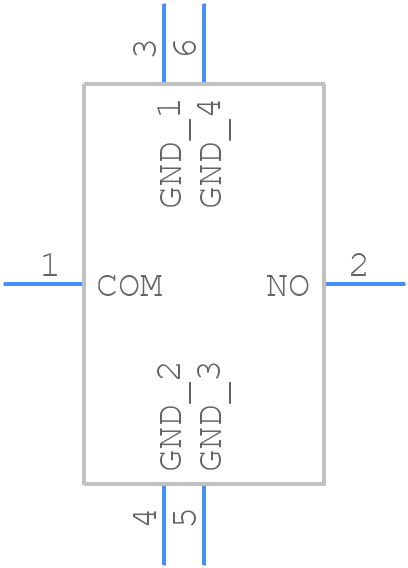

Symbol

PTS820J25KSMTR LFS - LITTELFUSE - PCB symbol

PCB Footprints

PTS820J25KSMTR LFS - LITTELFUSE PCB footprint - Other - Other - 4.4mm x 2.9mm x 2.5mm

3D Models

PTS820J25KSMTR LFS - LITTELFUSE - 3D model - Other - 4.4mm x 2.9mm x 2.5mm

Datasheet Download Datasheet
Stock & Prices Price & Stock for PTS820J25KSMTR LFS
Part Number PTS820J25KSMTR LFS
Manufacturer LITTELFUSE
Pin Count 6
Part Category Switch
Package Category Other
Footprint Name Other - 4.4mm x 2.9mm x 2.5mm
Released Date Jan 29, 2025
Last Modified Date Apr 10, 2026 9:41 PM UTC
Pinout / Pin List Click Here (Member Only)

PTS820J25KSMTR LFS Details

Manufacturer Part Number:
PTS820J25KSMTR LFS
Manufacturer:
Littelfuse Inc

Trust Checks

Community Provided

System Verified

Community Approved

PTS820J25KSMTR LFS Overview

Use the download button to access the PTS820J25KSMTR LFS schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like PTS82, or try a keyword search, such as Keypad Switches
