PTSM05/4-25-HTHRR32 - Phoenix Contact

Description: PCB terminal block, nominal current: 6 A, rated voltage (III/2): 160 V, nominal cross section: 0.5 mm2, number of potentials: 4, number of rows: 1, number of positions per row: 4, product range: PTSM 0,5/..-H-THR, pitch: 2.5 mm, connection method: Push-in spring connection, mounting: THR soldering, conductor/PCB connection direction: 0 °, color: black, Pin layout: Linear pinning, Solder pin [P]: 2.1 mm, number of solder pins per potential: 2, type of packaging: 32 mm wide tape

Download PTSM05/4-25-HTHRR32 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

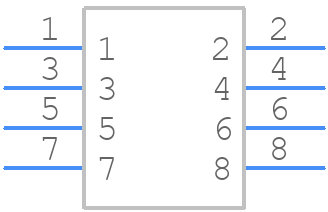

PTSM05/4-25-HTHRR32 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

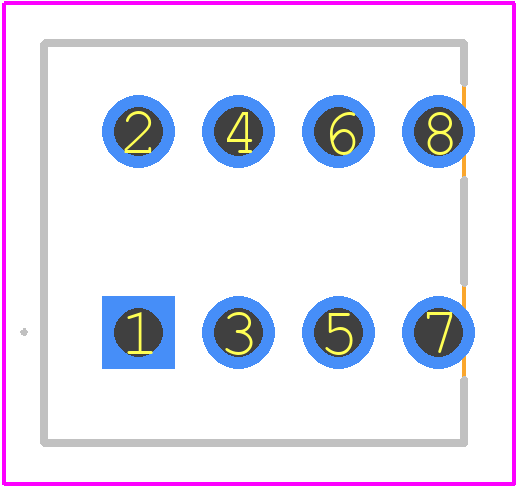

PTSM05/4-25-HTHRR32 - Phoenix Contact PCB footprint - Other - Other - PTSM05/4-25-HTHRR32-1
