Bourns recommends a PCB layout with a solid ground plane and a via to the ground plane directly under the device to minimize inductance and ensure optimal performance.
While the device is rated for operation up to 150°C, it's essential to consider the derating of the device's characteristics, such as clamping voltage and power dissipation, at elevated temperatures. Consult with Bourns' application engineers for specific guidance.
Follow the recommended soldering profile and ensure the device is properly aligned on the PCB. Use a soldering iron with a temperature of 260°C (500°F) and a solder with a melting point of 220°C (428°F) or higher.
Handle the device by the body, avoiding touching the leads or the glass passivation. Store the devices in their original packaging or in a dry, ESD-protected environment to prevent damage from moisture or electrostatic discharge.
While the device is designed for transient voltage suppression, it may not be suitable for high-frequency applications due to its internal capacitance and inductance. Consult with Bourns' application engineers to determine the device's suitability for your specific application.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PTVS1-058C-H Overview

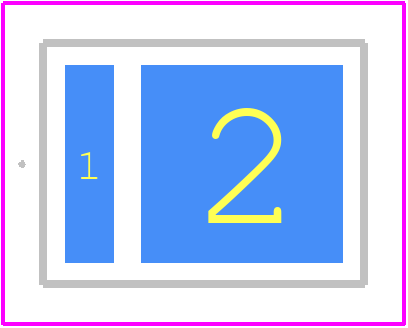

Use the download button to access the PTVS1-058C-H schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PTVS1,
or try a keyword search, such as Transient Suppressors
