Bourns provides a recommended PCB layout and land pattern in their application note AN164, which can be found on their website. It's essential to follow these guidelines to ensure proper thermal performance and reliability.
When selecting a PTVS1-066C-H variant, consider factors such as the required voltage rating, power rating, and package type. Bourns offers a product selector tool on their website that can help narrow down the options based on specific requirements.
While the datasheet specifies an operating temperature range of -40°C to 125°C, it's essential to note that the device's performance and reliability may degrade at extreme temperatures. It's recommended to consult with Bourns' application engineers for specific guidance on temperature-related considerations.
While PTVS1-066C-H is designed for general-purpose overvoltage protection, it may not be suitable for high-frequency applications due to its internal capacitance and inductance. Bourns recommends using their high-frequency-specific TVS diodes, such as the PTVS1-0X1C-H series, for applications above 1 MHz.
Bourns provides a soldering and assembly guide in their application note AN165, which covers recommended soldering profiles, PCB preparation, and handling guidelines to ensure reliable assembly and minimize defects.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PTVS1-066C-H Overview

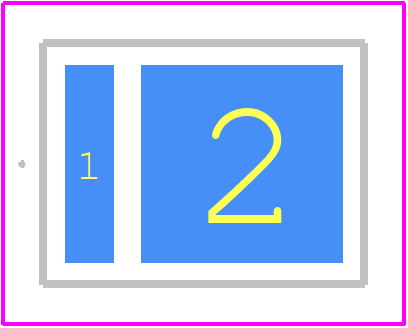

Use the download button to access the PTVS1-066C-H schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PTVS1,
or try a keyword search, such as Transient Suppressors
