PTVS1-076C-H - Bourns

Description: 1KA high current bidirectional TVS diodes ESD Suppressors / TVS Diodes 3kA 76V BI Surface Mt High Temp

Download PTVS1-076C-H Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PTVS1-076C-H - Bourns - PCB symbol
click to zoom
PCB Footprints

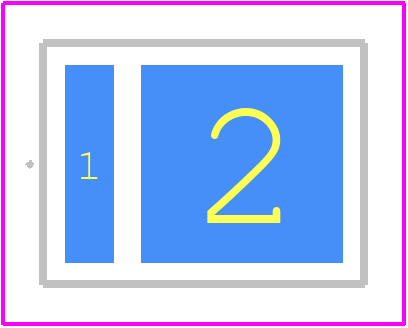

PTVS1-076C-H - Bourns PCB footprint - Other - Other - PTVS1-076C-H-2
click to zoom
3D Models
PTVS1-076C-H - Bourns - 3D model - Other - PTVS1-076C-H-2
click to zoom

PTVS1-076C-H Details

  • Manufacturer Part Number:

    PTVS1-076C-H

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    UK

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.50

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Bourns Inc

  • YTEOL:

    8

  • Breakdown Voltage-Max:

    95 V

  • Breakdown Voltage-Min:

    85 V

  • Breakdown Voltage-Nom:

    90 V

  • Clamping Voltage-Max:

    91 V

  • Configuration:

    SINGLE

  • Diode Element Material:

    SILICON

  • Diode Type:

    TRANS VOLTAGE SUPPRESSOR DIODE

  • JESD-30 Code:

    R-PBCC-N2

  • Moisture Sensitivity Level:

    1

  • Non-rep Peak Rev Power Dis-Max:

    91000 W

  • Number of Elements:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER

  • Packing Method:

    TR, 13 INCH

  • Polarity:

    BIDIRECTIONAL

  • Reference Standard:

    IEC-61000-4-5; MIL-STD-750; UL RECOGNIZED

  • Rep Pk Reverse Voltage-Max:

    76 V

  • Reverse Current-Max:

    10 µA

  • Reverse Test Voltage:

    76 V

  • Surface Mount:

    YES

  • Technology:

    AVALANCHE

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    BOTTOM

PTVS1-076C-H Frequently Asked Questions (FAQs)

  • Bourns recommends a PCB layout with a solid ground plane and a via to the ground plane directly under the device to minimize inductance and ensure optimal performance.
  • Select the correct variant based on the required standoff voltage, peak pulse current, and operating temperature range. Consult the datasheet and Bourns' application notes for guidance.
  • The maximum allowable lead temperature during soldering is 260°C for 10 seconds, as per the JEDEC J-STD-020 standard.
  • While PTVS1-076C-H is designed for transient voltage suppression, it may not be suitable for high-frequency applications due to its internal capacitance and inductance. Consult Bourns' application notes and simulation tools to determine its suitability for your specific application.
  • Ensure the reliability of PTVS1-076C-H in a harsh environment by following proper PCB design and layout guidelines, using a conformal coating, and selecting a variant with a suitable operating temperature range and moisture sensitivity level.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PTVS1-076C-H Overview

Use the download button to access the PTVS1-076C-H schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PTVS1, or try a keyword search, such as Transient Suppressors
