Bourns recommends a PCB layout with a solid ground plane and a via to the ground plane directly under the device to minimize inductance and ensure optimal performance.
Select the correct variant based on the required standoff voltage, clamping voltage, and power rating. Consult the datasheet and Bourns' application notes for guidance.
The maximum operating temperature range for PTVS1-086C-H is -40°C to +125°C, but derating may be required for high-temperature applications.
Yes, PTVS1-086C-H is suitable for high-frequency applications up to 1 GHz, but ensure proper PCB layout and decoupling to minimize parasitic inductance and capacitance.
Follow Bourns' recommended assembly and handling procedures, and ensure the device is properly soldered and cleaned. Also, consider using a conformal coating to protect the device from moisture and contaminants.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PTVS1-086C-H Overview

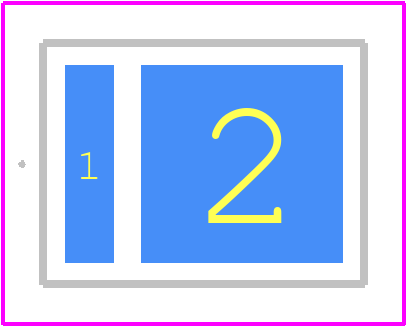

Use the download button to access the PTVS1-086C-H schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PTVS1,
or try a keyword search, such as Transient Suppressors
