PTVS1-240C-M - Bourns

Description: 1 kA, 240 V high current bidirectional TVS diode

Download PTVS1-240C-M Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PTVS1-240C-M - Bourns - PCB symbol
click to zoom

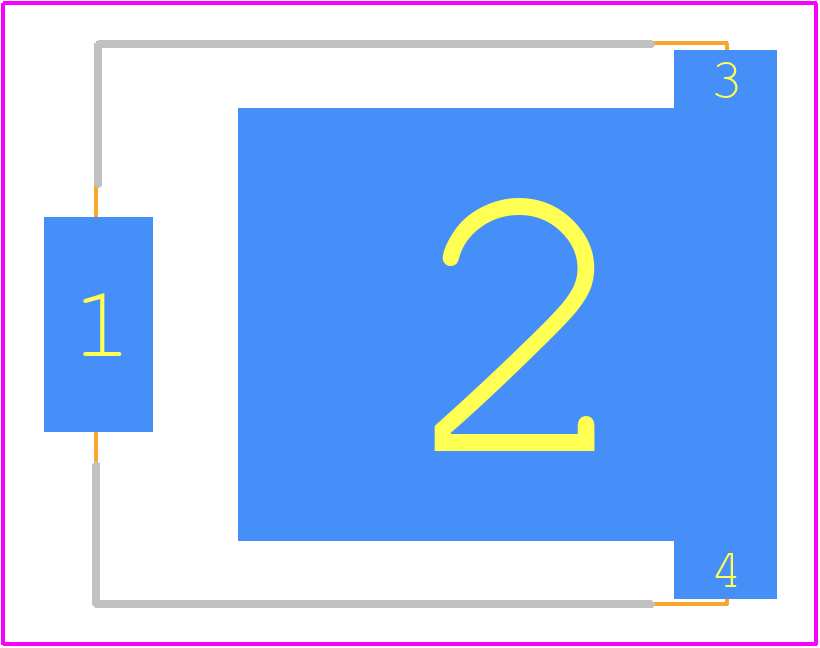

PCB Footprints
PTVS1-240C-M - Bourns PCB footprint - Other - Other - PTVS1-240C-M
click to zoom
3D Models
PTVS1-240C-M - Bourns - 3D model - Other - PTVS1-240C-M
click to zoom

PTVS1-240C-M Details

  • Manufacturer Part Number:

    PTVS1-240C-M

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.50

  • Manufacturer:

    Bourns Inc

  • Diode Type:

    TRANS VOLTAGE SUPPRESSOR DIODE

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Tin (Sn)

  • Time@Peak Reflow Temperature-Max (s):

    30

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PTVS1-240C-M Overview

Use the download button to access the PTVS1-240C-M schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PTVS1, or try a keyword search, such as Transient Suppressors
