PTVS1-380C-THL footprint, schematic symbol and 3D model by Bourns

Symbol

click to zoom

PCB Footprints

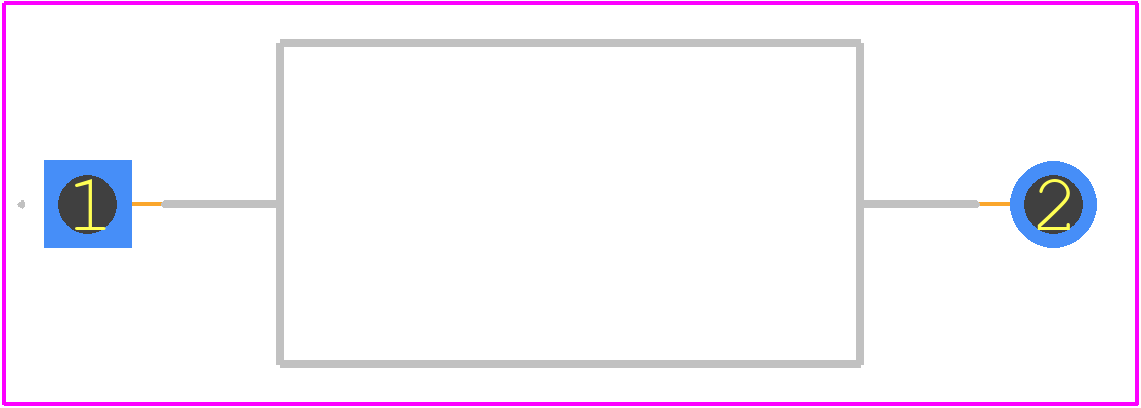

PTVS1-380C-THL - Bourns PCB footprint - Other - Other - PTVS1-380C-THL-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for PTVS1-380C-THL
Part Number PTVS1-380C-THL
Manufacturer Bourns
Pin Count 2
Part Category TVS Diode (Bi-directional)
Package Category Other
Footprint Name Other - PTVS1-380C-THL-1
Released Date Jul 10, 2025
Last Modified Date Dec 4, 2025 1:30 AM UTC
Pinout / Pin List Click Here (Member Only)

PTVS1-380C-THL Details

Manufacturer Part Number:
PTVS1-380C-THL
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
UK
ECCN Code:
EAR99
HTS Code:
8541.10.00.50
Factory Lead Time:
14 Weeks
Date Of Intro:
2019-09-24
Manufacturer:
Bourns Inc
YTEOL:
6.06
Breakdown Voltage-Max:
443 V
Breakdown Voltage-Min:
401 V
Breakdown Voltage-Nom:
422 V
Clamping Voltage-Max:
520 V
Configuration:
SINGLE
Diode Element Material:
SILICON
Diode Type:
TRANS VOLTAGE SUPPRESSOR DIODE
JESD-30 Code:
R-P(NULL)-T2
Number of Elements:
1
Number of Terminals:
2
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Package Body Material:
PLASTIC/EPOXY
Package Shape:
RECTANGULAR
Packing Method:
TRAY
Polarity:
BIDIRECTIONAL
Reference Standard:
IEC-61000-4-5; UL RECOGNIZED
Rep Pk Reverse Voltage-Max:
380 V
Reverse Current-Max:
10 µA
Reverse Test Voltage:
380 V
Surface Mount:
NO
Technology:
AVALANCHE
Terminal Form:
THROUGH-HOLE

PTVS1-380C-THL Frequently Asked Questions (FAQs)

Bourns recommends a PCB layout with a solid ground plane and a via to the ground plane directly under the device to minimize inductance and ensure optimal performance.
Select a PTVS device based on the maximum voltage and current requirements of your application. Consider factors such as clamping voltage, peak pulse current, and power dissipation to ensure the device can handle the expected surge conditions.
The PTVS1-380C-THL has a specific breakdown voltage and clamping voltage, whereas other devices in the same family may have different voltage ratings. Check the datasheet for specific details on each device.
The PTVS1-380C-THL is rated for operation up to 150°C. However, derating may be necessary for high-temperature applications. Consult the datasheet and Bourns' application notes for guidance on high-temperature use.
Follow Bourns' recommended soldering profile and ensure the device is properly aligned on the PCB. Use a soldering iron with a temperature of 260°C (max) and a solder with a melting point of 220°C (min).

Trust Checks

Community Provided

System Verified

Community Approved

PTVS1-380C-THL Overview

Use the download button to access the PTVS1-380C-THL schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like PTVS1, or try a keyword search, such as Transient Suppressors
