PTVS2-029C-H - Bourns

Description: 34V (Typ) Clamp 2000A (2kA) (8/20µs) Ipp Tvs Diode Surface Mount 2-DFN (8x6)

Download PTVS2-029C-H Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PTVS2-029C-H - Bourns - PCB symbol
click to zoom
PCB Footprints

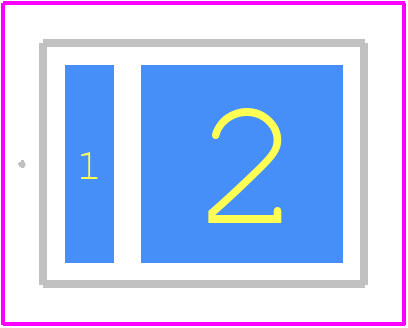

PTVS2-029C-H - Bourns PCB footprint - Other - Other - PTVS2-029C-H-2
click to zoom
3D Models
PTVS2-029C-H - Bourns - 3D model - Other - PTVS2-029C-H-2
click to zoom

PTVS2-029C-H Details

  • Manufacturer Part Number:

    PTVS2-029C-H

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    UK

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.50

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Bourns Inc

  • YTEOL:

    8

  • Breakdown Voltage-Max:

    35 V

  • Breakdown Voltage-Min:

    32 V

  • Breakdown Voltage-Nom:

    33.5 V

  • Clamping Voltage-Max:

    34 V

  • Configuration:

    SINGLE

  • Diode Element Material:

    SILICON

  • Diode Type:

    TRANS VOLTAGE SUPPRESSOR DIODE

  • JESD-30 Code:

    R-PBCC-N2

  • Non-rep Peak Rev Power Dis-Max:

    68000 W

  • Number of Elements:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER

  • Packing Method:

    TR, 13 INCH

  • Polarity:

    BIDIRECTIONAL

  • Reference Standard:

    IEC-61000-4-5; MIL-STD-750; UL RECOGNIZED

  • Rep Pk Reverse Voltage-Max:

    29 V

  • Reverse Current-Max:

    10 µA

  • Reverse Test Voltage:

    29 V

  • Surface Mount:

    YES

  • Technology:

    AVALANCHE

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    BOTTOM

PTVS2-029C-H Frequently Asked Questions (FAQs)

  • Bourns recommends a PCB layout with a solid ground plane and a via to the ground plane directly under the device to minimize inductance and ensure optimal performance.
  • Select the correct variant based on the required standoff voltage, peak pulse current, and package type. Consult the datasheet and Bourns' application notes for guidance.
  • The maximum operating temperature range for PTVS2-029C-H is -40°C to +125°C, but derating may be required for high-temperature applications.
  • While PTVS2-029C-H is designed for high-speed transients, it may not be suitable for high-frequency applications above 1 MHz. Consult Bourns' application notes for guidance on high-frequency usage.
  • Ensure the device is properly soldered, and the PCB is designed with adequate clearance and creepage distances. Apply conformal coating and follow IPC standards for PCB assembly and handling.
