PTZTFTE252.4B - ROHM Semiconductor

Description: 1W 2.4V, DO-214AC, High Power Zener Diode for Automotive

Download PTZTFTE252.4B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PTZTFTE252.4B - ROHM Semiconductor - PCB symbol
click to zoom
PCB Footprints

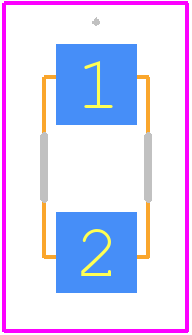

PTZTFTE252.4B - ROHM Semiconductor PCB footprint - Other - Other - PMDS(H=2.2mm)-2
click to zoom
3D Models
PTZTFTE252.4B - ROHM Semiconductor - 3D model - Other - PMDS(H=2.2mm)-2
click to zoom

PTZTFTE252.4B Details

  • Manufacturer Part Number:

    PTZTFTE252.4B

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.50

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    6.65

  • Additional Feature:

    HIGH RELIABILITY

  • Configuration:

    SINGLE

  • Diode Element Material:

    SILICON

  • Diode Type:

    ZENER DIODE

  • JEDEC-95 Code:

    DO-214AC

  • JESD-30 Code:

    R-PDSO-C2

  • JESD-609 Code:

    e1

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity:

    UNIDIRECTIONAL

  • Power Dissipation-Max:

    1 W

  • Reference Standard:

    AEC-Q101

  • Reference Voltage-Nom:

    2.4 V

  • Surface Mount:

    YES

  • Technology:

    ZENER

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    C BEND

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    10

  • Voltage Tol-Max:

    5.88%

  • Working Test Current:

    40 mA

PTZTFTE252.4B Frequently Asked Questions (FAQs)

  • ROHM recommends a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
  • ROHM recommends derating the power dissipation according to the temperature derating curve in the datasheet. Additionally, ensure good airflow and thermal management around the device.
  • The maximum allowable voltage for the input pins is the supply voltage (VCC) + 0.3V. Exceeding this voltage may cause damage to the device.
  • Yes, the PTZTFTE252.4B is suitable for switching regulator applications. However, ensure that the device is properly bypassed and decoupled to minimize noise and voltage spikes.
  • Power dissipation can be calculated using the formula: Pd = (Vin - Vout) x Iout. Refer to the datasheet for the maximum allowable power dissipation and thermal resistance values.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PTZTFTE252.4B Overview

Use the download button to access the PTZTFTE252.4B schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PTZTF, or try a keyword search, such as Zener Diodes
