PTZTFTE253.0B - ROHM Semiconductor

PTZTFTE253.0B Frequently Asked Questions (FAQs)

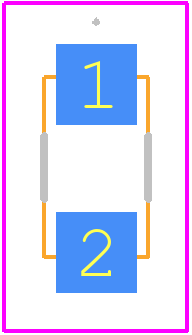

• What is the recommended PCB layout for PTZTFTE253.0B to minimize thermal resistance?
  ROHM recommends a PCB layout with a thermal pad connected to a large copper area on the bottom layer, and multiple vias to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
• How do I ensure the reliability of PTZTFTE253.0B in high-temperature applications?
  To ensure reliability, follow the recommended derating curve, and consider using a heat sink or thermal interface material. Also, ensure the device is operated within the specified junction temperature (Tj) range.
• What is the maximum allowed voltage for PTZTFTE253.0B, considering voltage spikes and transients?
  While the datasheet specifies a maximum voltage of 25V, ROHM recommends considering voltage spikes and transients up to 30V for a short duration (less than 100ms). However, it's essential to ensure the device is operated within the specified absolute maximum ratings.
• Can I use PTZTFTE253.0B in a high-frequency switching application?
  Yes, PTZTFTE253.0B is suitable for high-frequency switching applications up to 100kHz. However, consider the device's switching characteristics, such as rise and fall times, and ensure the layout is optimized for high-frequency operation.
• How do I handle the power sequencing requirements for PTZTFTE253.0B?
  ROHM recommends powering up the VCC pin before the VIN pin, and powering down the VIN pin before the VCC pin to prevent latch-up and ensure proper operation.
