PU3921FKMP90R001L - Yageo Group

Description: Current Sense Resistors - SMD 3921 1% 9W 0.001 OHM 75 PPM AEC-Q200

Download PU3921FKMP90R001L Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PU3921FKMP90R001L - Yageo Group - PCB symbol
click to zoom

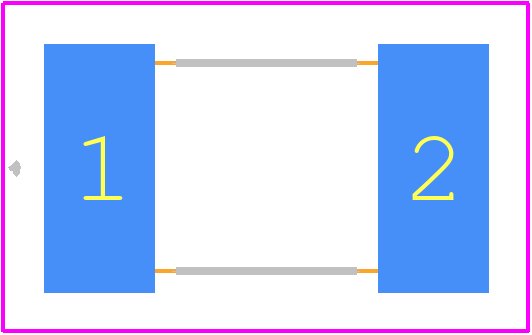

PCB Footprints
PU3921FKMP90R001L - Yageo Group PCB footprint - Other - Other - PU3921
click to zoom
3D Models
PU3921FKMP90R001L - Yageo Group - 3D model - Other - PU3921
click to zoom

PU3921FKMP90R001L Details

  • Manufacturer Part Number:

    PU3921FKMP90R001L

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.21.00.30

  • Factory Lead Time:

    22 Weeks

  • Manufacturer:

    YAGEO Corporation

  • YTEOL:

    7.6

  • Construction:

    Rectangular

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    170 °C

  • Operating Temperature-Min:

    -65 °C

  • Package Height:

    0.43 mm

  • Package Length:

    10 mm

  • Package Style:

    SMT

  • Package Width:

    5.2 mm

  • Packing Method:

    TR, Embossed Plastic, 13 Inch

  • Rated Power Dissipation (P):

    9 W

  • Rated Temperature:

    70 °C

  • Reference Standard:

    AEC-Q200

  • Resistance:

    0.001 Ω

  • Resistor Type:

    FIXED RESISTOR

  • Size Code:

    3921

  • Surface Mount:

    YES

  • Technology:

    METAL PLATE

  • Temperature Coefficient:

    75 ppm/°C

  • Terminal Shape:

    GULL WING

  • Tolerance:

    1%

  • Working Voltage:

    0.0949 V

PU3921FKMP90R001L Frequently Asked Questions (FAQs)

  • The recommended land pattern for PU3921FKMP90R001L is a rectangular pad with a size of 2.5mm x 1.25mm, with a non-solder mask defined (NSMD) pad shape.
  • Yes, PU3921FKMP90R001L is rated for operation up to 150°C, making it suitable for high-temperature applications. However, the operating temperature range should be derated according to the manufacturer's guidelines.
  • PU3921FKMP90R001L has a moisture sensitivity level (MSL) rating of 1, which means it can withstand normal humidity levels without special handling or storage requirements.
  • Yes, PU3921FKMP90R001L is compatible with lead-free soldering processes and can withstand the higher temperatures required for lead-free soldering.
  • The typical tolerance for the resistance value of PU3921FKMP90R001L is ±1%, but this can vary depending on the specific lot and manufacturing process.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PU3921FKMP90R001L Overview

Use the download button to access the PU3921FKMP90R001L schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PU392, or try a keyword search, such as Metal Strip Resistor
