The recommended land pattern for PU3921FKNP50U2L is a rectangular pad with a size of 1.3mm x 0.8mm, with a non-solder mask defined (NSMD) pad shape. This ensures proper soldering and minimizes the risk of solder bridging.
While the PU3921FKNP50U2L is rated for operation up to 150°C, it's essential to consider the derating curve and ensure that the component does not exceed its maximum operating temperature. Additionally, the PCB material and soldering process should be suitable for high-temperature applications.
To prevent damage, store the PU3921FKNP50U2L in its original packaging or a similar ESD-protective package. Avoid exposing the component to moisture, direct sunlight, or extreme temperatures. During shipping, ensure the package is properly sealed and protected from mechanical stress.
The lead time for PU3921FKNP50U2L can vary depending on the supplier, quantity, and region. Typically, the lead time ranges from 4-12 weeks. It's recommended to check with authorized distributors or YAGEO Corporation for the most up-to-date lead time information.
Yes, the PU3921FKNP50U2L is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, meeting the European Union's regulations for environmental protection.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
PU3921FKNP50U2L Overview

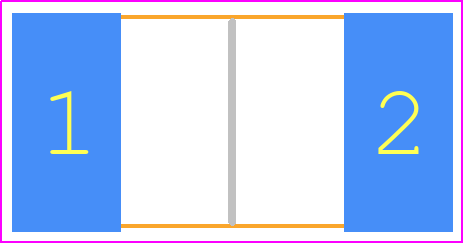

Use the download button to access the PU3921FKNP50U2L schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PU392,
or try a keyword search, such as Metal Strip Resistor
