PU5931FKHP70U2L - Yageo Group

Description: Current Sense Resistors - SMD .0002 ohm 1% 225ppm AEC-Q200

Download PU5931FKHP70U2L Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PU5931FKHP70U2L - Yageo Group - PCB symbol
click to zoom

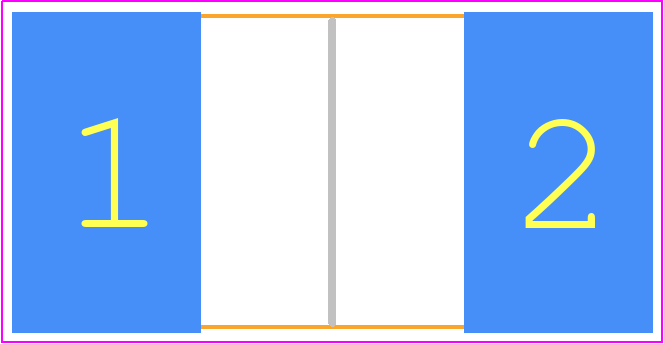

PCB Footprints
PU5931FKHP70U2L - Yageo Group PCB footprint - Resistor Chip - Resistor Chip - WSLP5931-
click to zoom
3D Models
PU5931FKHP70U2L - Yageo Group - 3D model - Resistor Chip - WSLP5931-
click to zoom

PU5931FKHP70U2L Details

  • Manufacturer Part Number:

    PU5931FKHP70U2L

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.21.00.30

  • Factory Lead Time:

    22 Weeks

  • Manufacturer:

    YAGEO Corporation

  • YTEOL:

    7.6

  • Construction:

    Rectangular

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    170 °C

  • Operating Temperature-Min:

    -65 °C

  • Package Height:

    1.33 mm

  • Package Length:

    15 mm

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    SMT

  • Package Width:

    7.75 mm

  • Packing Method:

    TR, Embossed Plastic, 13 Inch

  • Rated Power Dissipation (P):

    7 W

  • Rated Temperature:

    70 °C

  • Reference Standard:

    AEC-Q200

  • Resistance:

    0.0002 Ω

  • Resistor Type:

    FIXED RESISTOR

  • Size Code:

    5931

  • Surface Mount:

    YES

  • Technology:

    METAL PLATE

  • Temperature Coefficient:

    225 ppm/°C

  • Terminal Shape:

    WRAPAROUND

  • Tolerance:

    1%

  • Working Voltage:

    0.0374 V

PU5931FKHP70U2L Frequently Asked Questions (FAQs)

  • The recommended land pattern for PU5931FKHP70U2L is a rectangular pad with a size of 1.3mm x 0.8mm, with a non-solder mask defined (NSMD) pad shape. The pad should be centered on the component and have a solder mask clearance of 0.1mm.
  • During reflow soldering, the PU5931FKHP70U2L should be placed on a flat surface to prevent warpage. The recommended reflow profile is a peak temperature of 260°C, with a dwell time of 20-30 seconds above 220°C. The component should be cooled down to 150°C within 10 minutes.
  • Yes, the PU5931FKHP70U2L is compatible with lead-free soldering. YAGEO Corporation recommends using a lead-free solder alloy with a melting point of 217°C or higher.
  • The PU5931FKHP70U2L has a moisture sensitivity level (MSL) of 3, according to the IPC/JEDEC J-STD-020 standard. This means that the component can be exposed to a maximum of 30°C/60% RH for 168 hours before soldering.
  • Yes, the PU5931FKHP70U2L is designed to withstand high-vibration environments. However, it's recommended to follow YAGEO Corporation's guidelines for vibration testing and to ensure that the component is properly secured to the PCB to prevent mechanical stress.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PU5931FKHP70U2L Overview

Use the download button to access the PU5931FKHP70U2L schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PU593, or try a keyword search, such as Metal Strip Resistor
