The recommended soldering temperature profile for PU5931FKNT50U5L is 260°C for 10 seconds, with a peak temperature of 240°C. However, it's essential to consult the YAGEO soldering guidelines and the specific assembly process requirements.
Yes, PU5931FKNT50U5L is compatible with lead-free soldering processes. YAGEO ensures that their resistors meet the requirements of the RoHS directive and can withstand the higher temperatures associated with lead-free soldering.
The MSL of PU5931FKNT50U5L is MSL 1, which means it can withstand a maximum of 30 days in a standard ambient environment (30°C, 60% RH) before soldering. It's essential to follow proper storage and handling procedures to prevent moisture absorption.
While PU5931FKNT50U5L is a general-purpose resistor, it's not specifically designed for high-frequency applications. For high-frequency use, YAGEO recommends using their high-frequency resistor series, such as the PU series with a 'HF' suffix.
The expected lifespan of PU5931FKNT50U5L is dependent on various factors, including operating temperature, humidity, and power rating. Under normal operating conditions, the resistor can last for 10 to 20 years or more. However, it's essential to follow proper derating guidelines and consider environmental factors to ensure reliable operation.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PU5931FKNT50U5L Overview

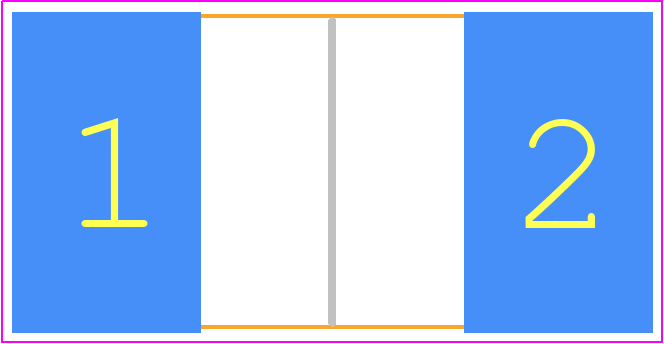

Use the download button to access the PU5931FKNT50U5L schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PU593,
or try a keyword search, such as Metal Strip Resistor
