PUSB3F96X - Nexperia

Description: 4.6V (Typ) Clamp 5.2A (8/20µs) Ipp Tvs Diode Surface Mount DFN2510A-10

Download PUSB3F96X Model

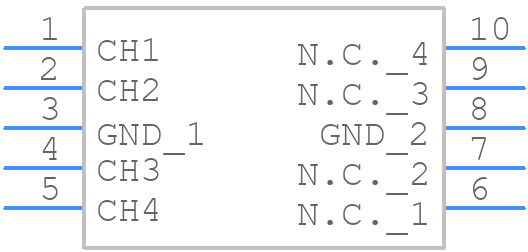

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
PUSB3F96X - Nexperia PCB footprint - Other - Other - PUSB3F96X
click to zoom
3D Models
PUSB3F96X - Nexperia  - 3D model - Other - PUSB3F96X
click to zoom

PUSB3F96X Details

  • Manufacturer Part Number:

    PUSB3F96X

  • Brand Name:

    Nexperia

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DFN

  • Package Description:

    SOT-1176-1, DFN2510A-10, 10 PIN

  • Pin Count:

    10

  • Manufacturer Package Code:

    SOT1176-1

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.50

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Nexperia

  • YTEOL:

    7

  • Breakdown Voltage-Min:

    6 V

  • Clamping Voltage-Max:

    4.6 V

  • Configuration:

    SINGLE, 4 CHANNEL

  • Diode Element Material:

    SILICON

  • Diode Type:

    TRANS VOLTAGE SUPPRESSOR DIODE

  • JESD-30 Code:

    R-PDSO-N10

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity:

    UNIDIRECTIONAL

  • Reference Standard:

    IEC-60134; IEC-61000-4-2, 4-5

  • Reverse Current-Max:

    1 µA

  • Reverse Test Voltage:

    3 V

  • Surface Mount:

    YES

  • Technology:

    AVALANCHE

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

PUSB3F96X Frequently Asked Questions (FAQs)

  • The maximum current rating of the PUSB3F96X is 1.5A per channel, with a total current rating of 3A for all channels combined.
  • To ensure signal integrity, it is recommended to use a 50Ω transmission line, keep the signal traces as short as possible, and use a common mode filter to reduce electromagnetic interference (EMI).
  • Yes, the PUSB3F96X is backward compatible with USB 2.0 devices, but the data transfer rate will be limited to USB 2.0 speeds.
  • To configure the PUSB3F96X for high-speed data transfer, set the HS_MODE pin high and ensure that the USB 3.2 Gen 1 signal is connected to the correct pins (D+/D-).
  • The operating temperature range of the PUSB3F96X is -40°C to 85°C.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PUSB3F96X Overview

Use the download button to access the PUSB3F96X schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PUSB3, or try a keyword search, such as Transient Suppressors

About Nexperia

Nexperia is a leading global player in the semiconductor industry. Specializing in essential electronic components, Nexperia offers a diverse range of products including discrete components, MOSFETs, logic ICs, and analog ICs. These components are integral to a multitude of applications across automotive, industrial, consumer electronics, and computing sectors, where reliability, performance, and efficiency are paramount.
