PV15-3,5-V-P footprint, schematic symbol and 3D model by Euroclamp

Symbol

click to zoom

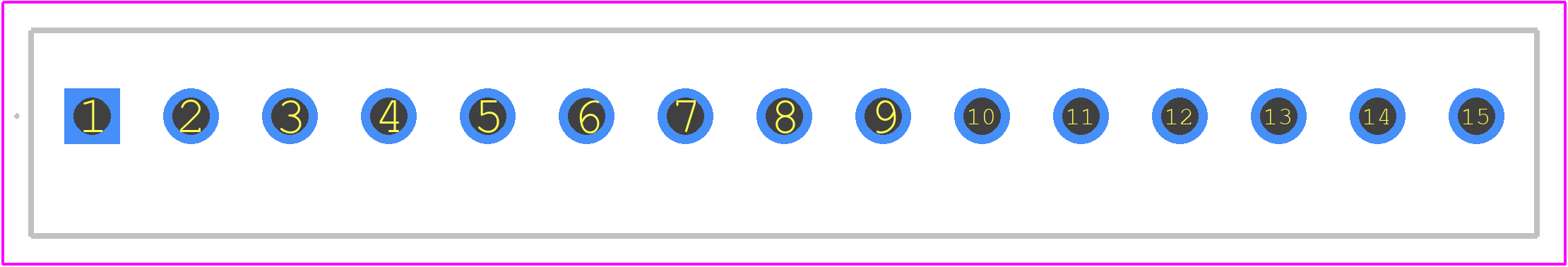

PCB Footprints

PV15-3,5-V-P - Euroclamp PCB footprint - Other - Other - PV15-3,5-V-P-1

click to zoom

3D Models

PV15-3,5-V-P - Euroclamp - 3D model - Other - PV15-3,5-V-P-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for PV15-3,5-V-P
Part Number PV15-3,5-V-P
Manufacturer Euroclamp
Pin Count 15
Part Category Connector
Package Category Other
Footprint Name Other - PV15-3,5-V-P-1
Released Date May 1, 2025
Last Modified Date May 1, 2025 10:04 AM UTC
Pinout / Pin List Click Here (Member Only)

PV15-3,5-V-P Details

Manufacturer Part Number:
PV15-3,5-V-P
Rohs Code:
Yes
Part Life Cycle Code:
Contact Manufacturer
ECCN Code:
EAR99
HTS Code:
8536.90.40.00
Manufacturer:
euroclamp
Additional Feature:
STANDARD: 94V-0, POLYAMIDE
Fastening Method:
CONNECTOR
Mounting Type:
BOARD
Number of Decks:
1
Number of Rows:
1
Number of Ways:
15
Rated Current:
11 A
Rated Voltage:
160 V
Safety Approval:
CUL; UL; VDE
Terminal and Terminal Block Type:
BARRIER STRIP TERMINAL BLOCK

Trust Checks

Community Provided

System Verified

Community Approved

PV15-3,5-V-P Overview

Use the download button to access the PV15-3,5-V-P schematic symbol, PCB footprint, and 3D model.
