PV40-27B24 - Mornsun Power

Description: 40W, 200-1200VDC ultra wide input voltage DC/DC converter for Renewable Energy

Download PV40-27B24 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PV40-27B24 - Mornsun Power - PCB symbol
click to zoom
PCB Footprints

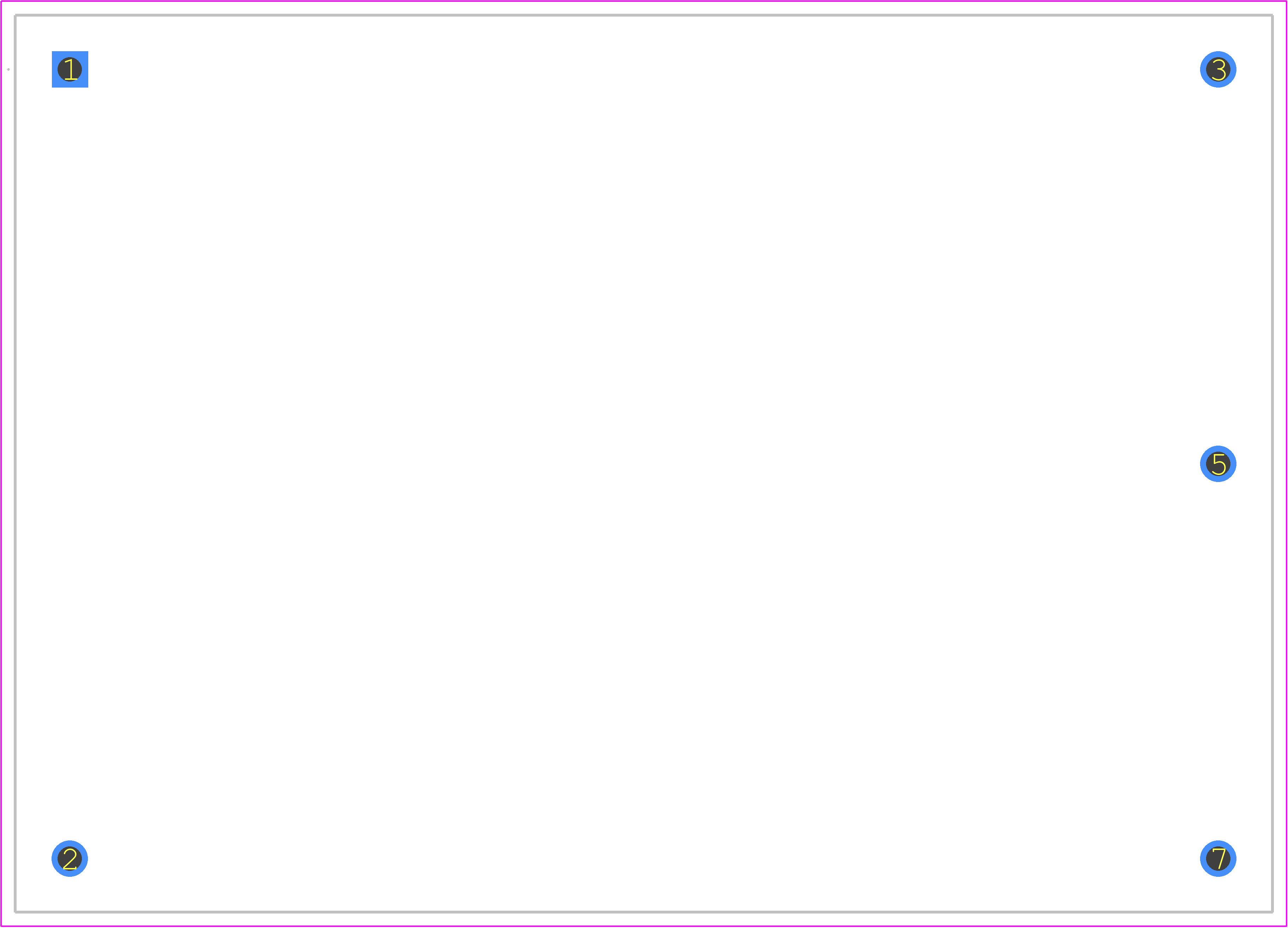

PV40-27B24 - Mornsun Power PCB footprint - Other - Other - PV40-27B24-3
click to zoom
3D Models
PV40-27B24 - Mornsun Power - 3D model - Other - PV40-27B24-3
click to zoom

PV40-27B24 Details

  • Manufacturer Part Number:

    PV40-27B24

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    MORNSUN

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

PV40-27B24 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the PV40-27B24 is -40°C to 85°C.
  • Yes, the PV40-27B24 is designed to operate in humid environments, but it's recommended to follow the derating curve for high humidity conditions.
  • The recommended input capacitor value for the PV40-27B24 is 10uF to 22uF, depending on the input voltage and operating conditions.
  • Yes, the PV40-27B24 is designed to operate in high-vibration environments, but it's recommended to follow the manufacturer's guidelines for vibration testing.
  • The maximum output current for the PV40-27B24 is 2.4A, but it's recommended to derate the output current based on the ambient temperature and operating conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PV40-27B24 Overview

Use the download button to access the PV40-27B24 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PV40-, or try a keyword search, such as Power Supply Modules
