PV40-29B24 Frequently Asked Questions (FAQs)

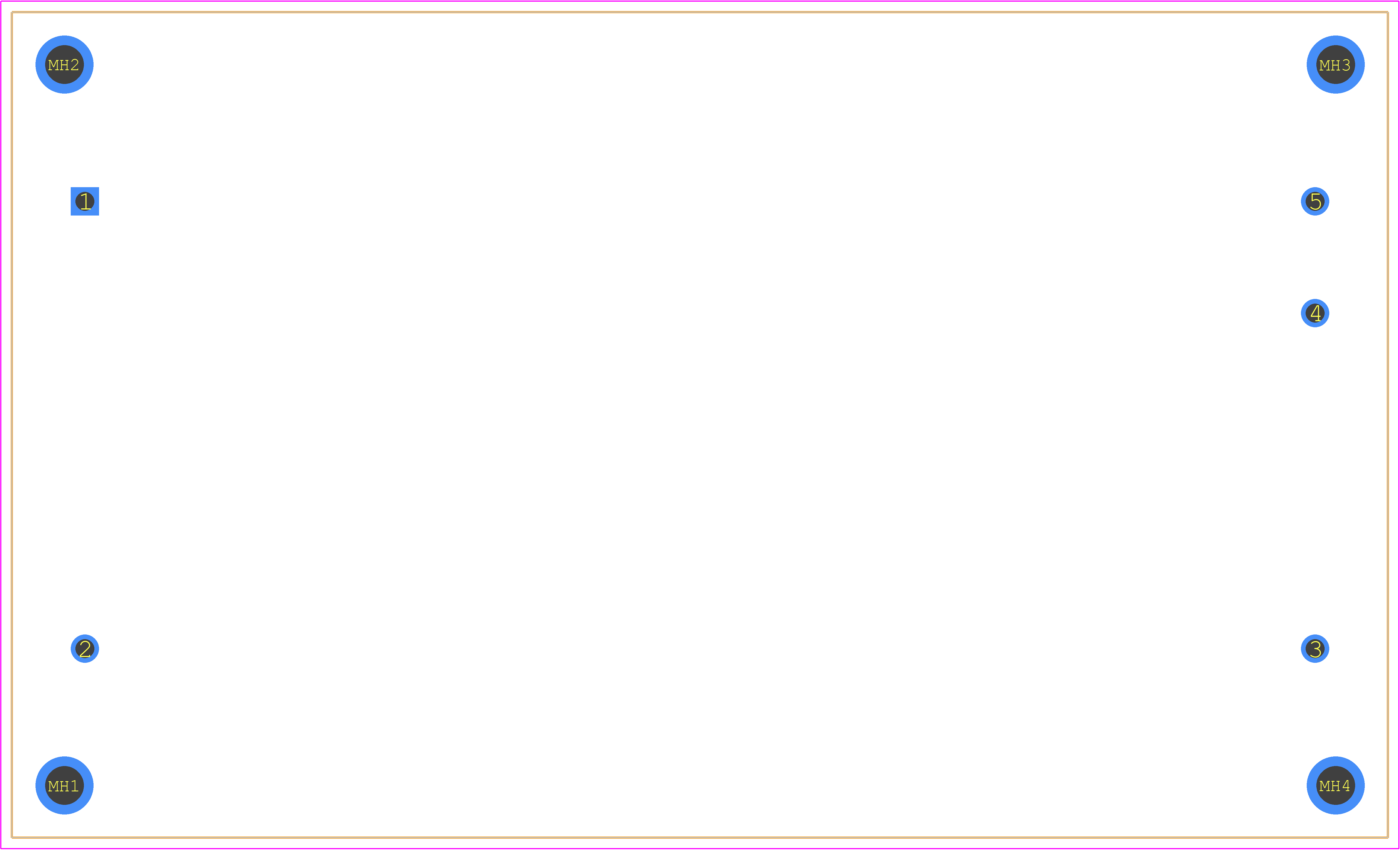

• What is the recommended PCB layout and thermal management for optimal performance?
  MORNSUN recommends a multi-layer PCB with a large copper area for heat dissipation, and a thermal pad on the bottom of the module for heat sinking. A minimum of 2oz copper thickness is recommended for the PCB.
• How do I ensure the module's reliability in high-temperature environments?
  MORNSUN recommends derating the output power by 1.5% per degree Celsius above 40°C to ensure reliability. Additionally, ensure good airflow and thermal management to keep the module temperature below 80°C.
• What is the recommended input capacitor type and value for this module?
  MORNSUN recommends using a low-ESR ceramic capacitor with a value of 10uF to 22uF, rated for the input voltage, to filter the input voltage and reduce ripple.
• Can I use this module in a redundant or parallel configuration?
  Yes, the PV40-29B24 can be used in a redundant or parallel configuration, but MORNSUN recommends consulting their application notes and performing thorough testing to ensure reliable operation.
• What is the module's behavior during input voltage brownout or dropout?
  The PV40-29B24 has a built-in undervoltage lockout (UVLO) that shuts down the module during input voltage brownout or dropout. The module will automatically restart when the input voltage recovers.
