PVB3-D12-D12-D footprint, schematic symbol and 3D model by CUI Inc.

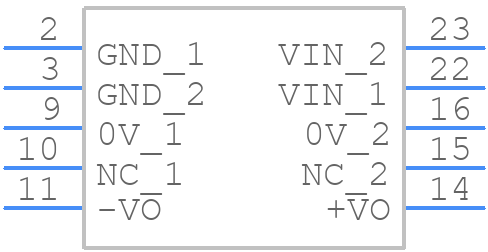

Symbol

click to zoom

PCB Footprints

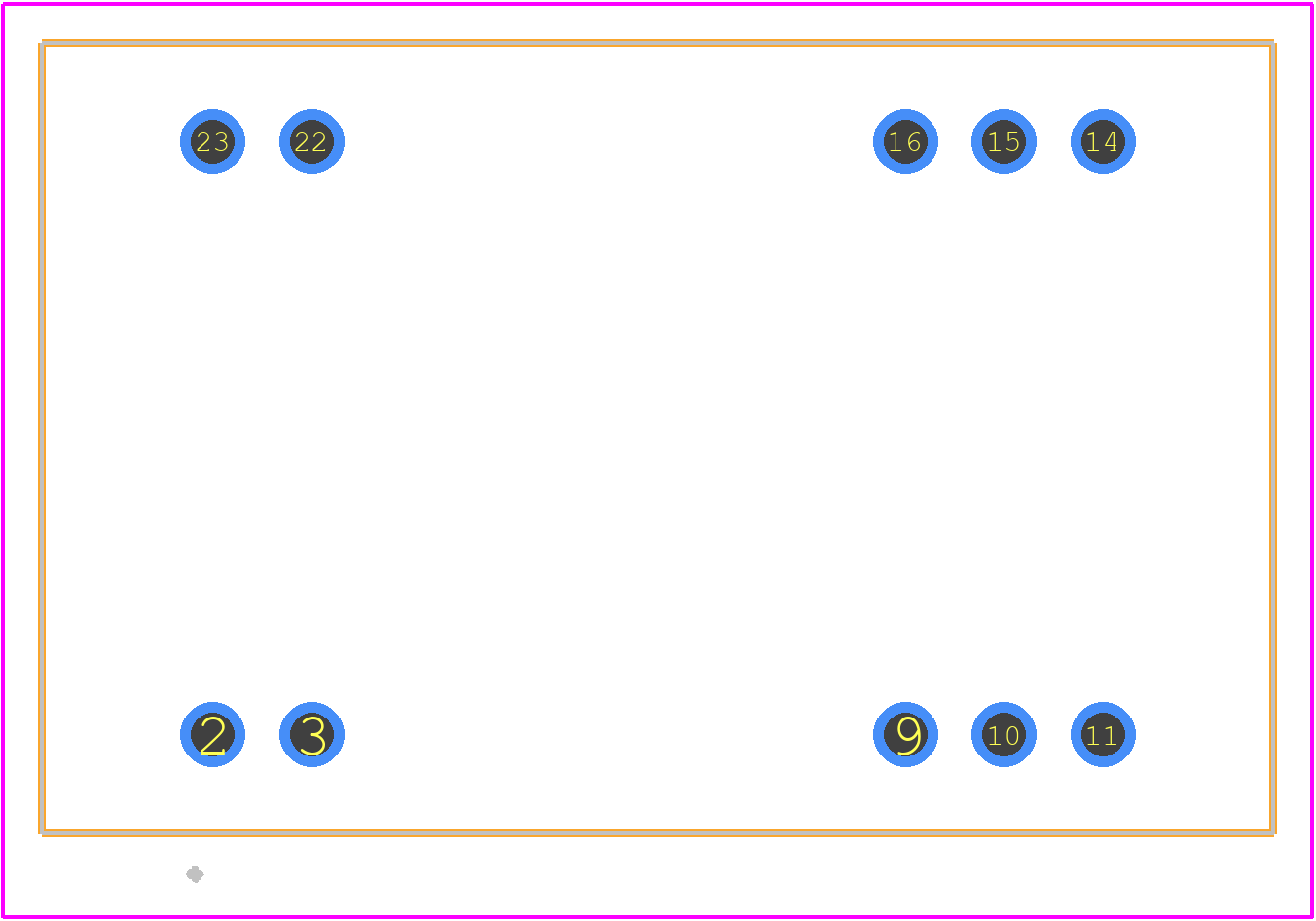

PVB3-D12-D12-D - CUI Inc. PCB footprint - Other - Other - PVB3-D12-D12-D-2

click to zoom

3D Models

PVB3-D12-D12-D - CUI Inc. - 3D model - Other - PVB3-D12-D12-D-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for PVB3-D12-D12-D
Part Number PVB3-D12-D12-D
Manufacturer CUI Inc.
Pin Count 10
Part Category Power Supply
Package Category Other
Footprint Name Other - PVB3-D12-D12-D-2
Released Date Feb 22, 2020
Last Modified Date Apr 7, 2025 11:56 AM UTC
Pinout / Pin List Click Here (Member Only)

PVB3-D12-D12-D Details

Manufacturer Part Number:
PVB3-D12-D12-D
Brand Name:
CUI Inc
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Transferred
ECCN Code:
EAR99
Manufacturer:
CUI Inc
YTEOL:
3
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
Input Voltage-Max:
18 V
Input Voltage-Min:
9 V
Input Voltage-Nom:
12 V
JESD-30 Code:
R-PDMA-T10
Length:
31.6 mm
Load Regulation-Max:
0.5%
Number of Functions:
1
Number of Outputs:
2
Number of Terminals:
10
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Voltage-Max:
12.36 V
Output Voltage-Min:
11.64 V
Output Voltage-Nom:
12 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
DMA
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Seated Height-Max:
10.7 mm
Surface Mount:
NO
Technology:
HYBRID
Temperature Grade:
INDUSTRIAL
Terminal Form:
THROUGH-HOLE
Terminal Pitch:
2.54 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Total Power Output-Max:
3 W
Trim/Adjustable Output:
NO
Width:
20.3 mm

PVB3-D12-D12-D Frequently Asked Questions (FAQs)

CUI recommends a PCB layout with a large copper area for heat dissipation, and a thermal management system such as a heat sink or thermal interface material to ensure the device operates within its specified temperature range.
To ensure stable and regulated output voltage, CUI recommends using a high-quality input capacitor, a low-ESR output capacitor, and a stable input voltage within the specified range. Additionally, the output voltage can be adjusted using the trim pin, and the converter's feedback loop should be properly compensated.
CUI recommends limiting the output capacitance to 10uF or less to prevent oscillation and ensure stable operation. Excessive output capacitance can cause the converter to oscillate or become unstable.
CUI recommends using a TVS (Transient Voltage Suppressor) diode or a surge protector at the input of the DC-DC converter to protect it from voltage transients and surges. This helps prevent damage to the converter and ensures reliable operation.
While the datasheet specifies a minimum and maximum input voltage, CUI recommends operating the DC-DC converter within a narrower range (e.g., 10.5V to 13.5V for a 12V input) to ensure optimal performance, efficiency, and reliability.
